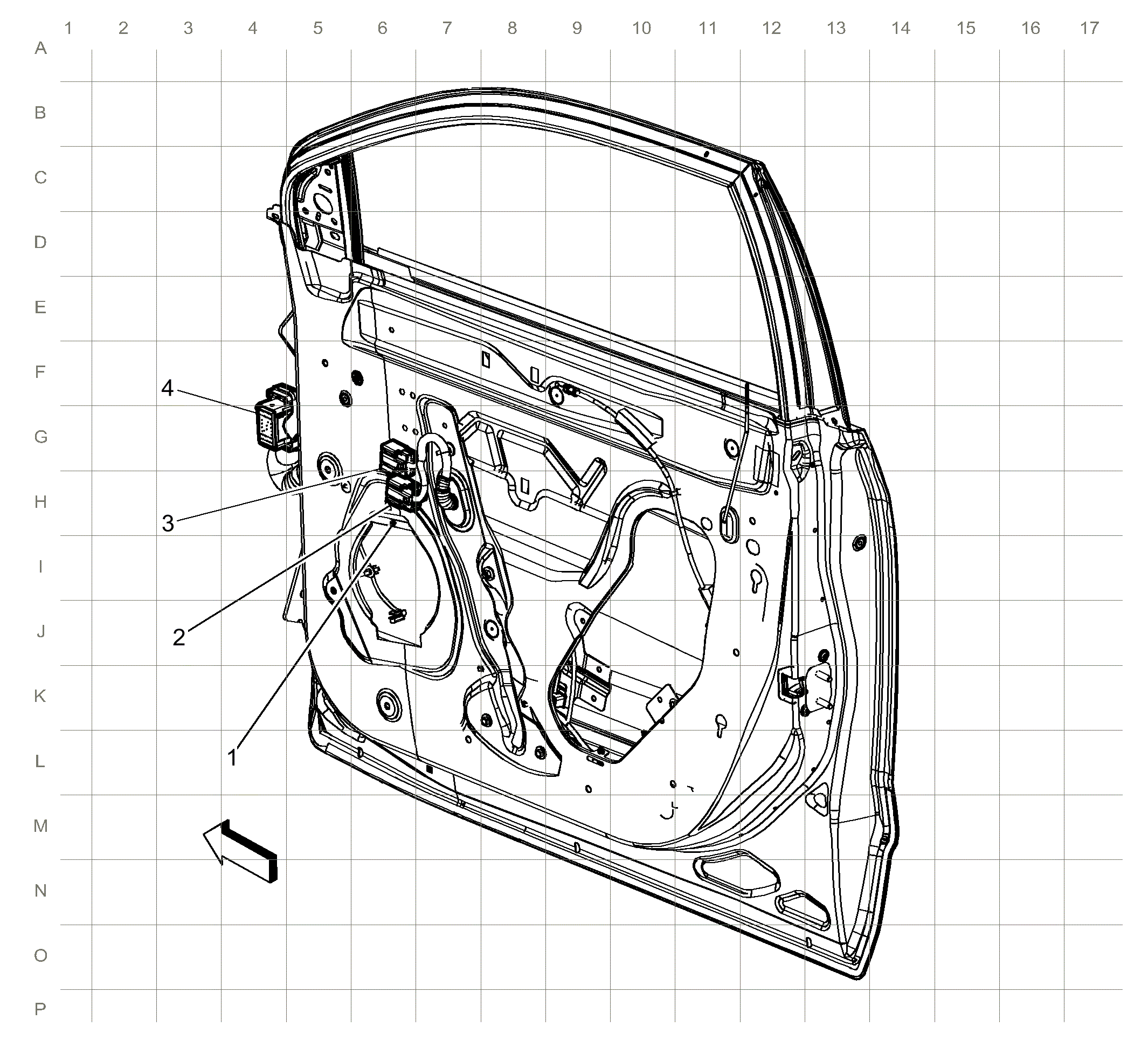

Passenger Door Harness Routing (Z88)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. J600 (without AXE) |
| 2. X664 X664 Passenger Door Trim Harness to Passenger Door Harness |
| 3. X666 X666 Passenger Door Trim Harness to Passenger Door Harness |
| 4. X600 X600 Passenger Door Harness to Body Harness |
