Passenger Door Harness Routing (X88)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

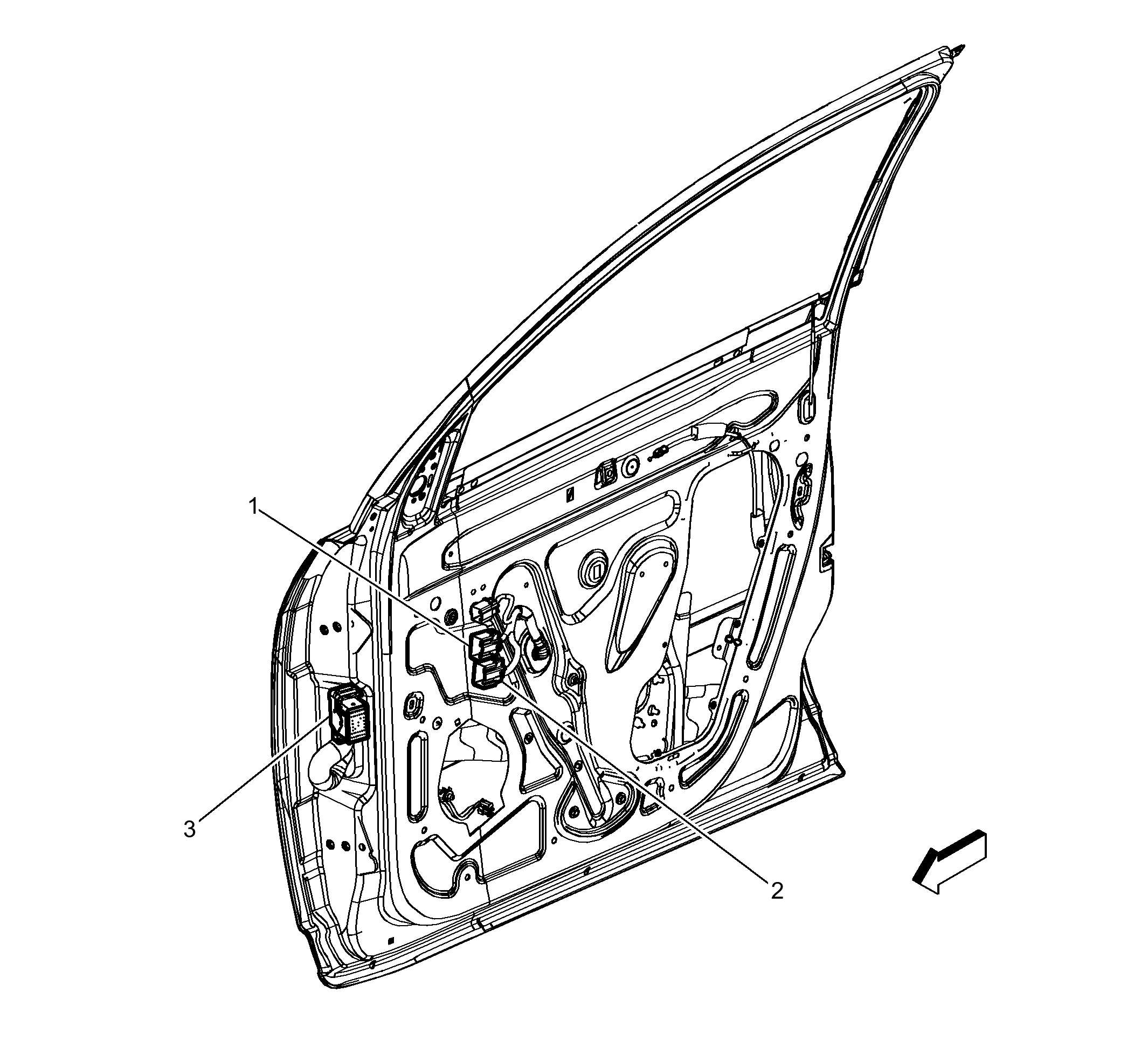

Fig 1: Passenger Door Harness Routing (X88)
GM4090290Courtesy of GENERAL MOTORS COMPANY
Items
1. X666 X666 Passenger Door Trim Harness to Passenger Door Harness
2. X664 X664 Passenger Door Trim Harness to Passenger Door Harness
3. X600 X600 Passenger Door Harness to Body Harness
