Forward Lamp Harness Routing

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

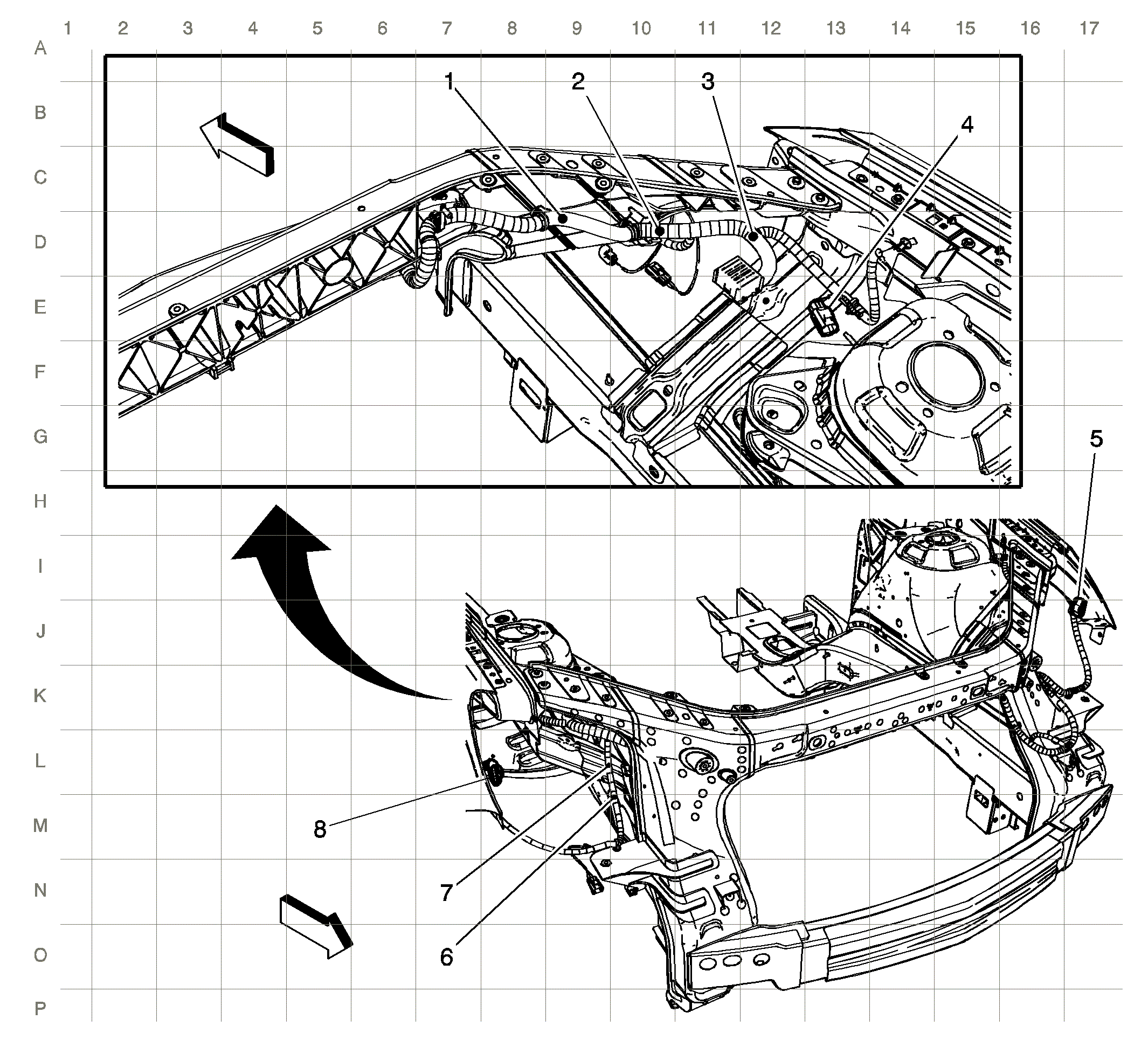

Fig 1: Forward Lamp Harness Routing

Courtesy of GENERAL MOTORS COMPANY

Items
1. J122
2. J120
3. J126 (Z88)
4. X115 (TSH or T26) X115 Engine Harness to Forward Lamp Harness (W49+(T97/T26))X115 Engine Harness to Forward Lamp Harness (TSH+W49)
5. X110 X110 Forward Lamp Harness to Left Headlamp Harness (W49+T26)X110 Forward Lamp Harness to Left Headlamp Harness (T97 with W49) T97 with W49 X110 Forward Lamp Harness to Left Headlamp Harness (TSH with W49) TSH with W49 X110 Forward Lamp Harness to Left Headlamp Harness (T26 with W49 without T97) T26 with W49 without T97 X110 Forward Lamp Harness to Left Headlamp Harness (X88)X110 Forward Lamp Harness to Left Headlamp Harness (Z88-TVD)X110 Forward Lamp Harness to Left Headlamp Harness (Z88+TVD)
