Engine Harness Splice Routing - Rear

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

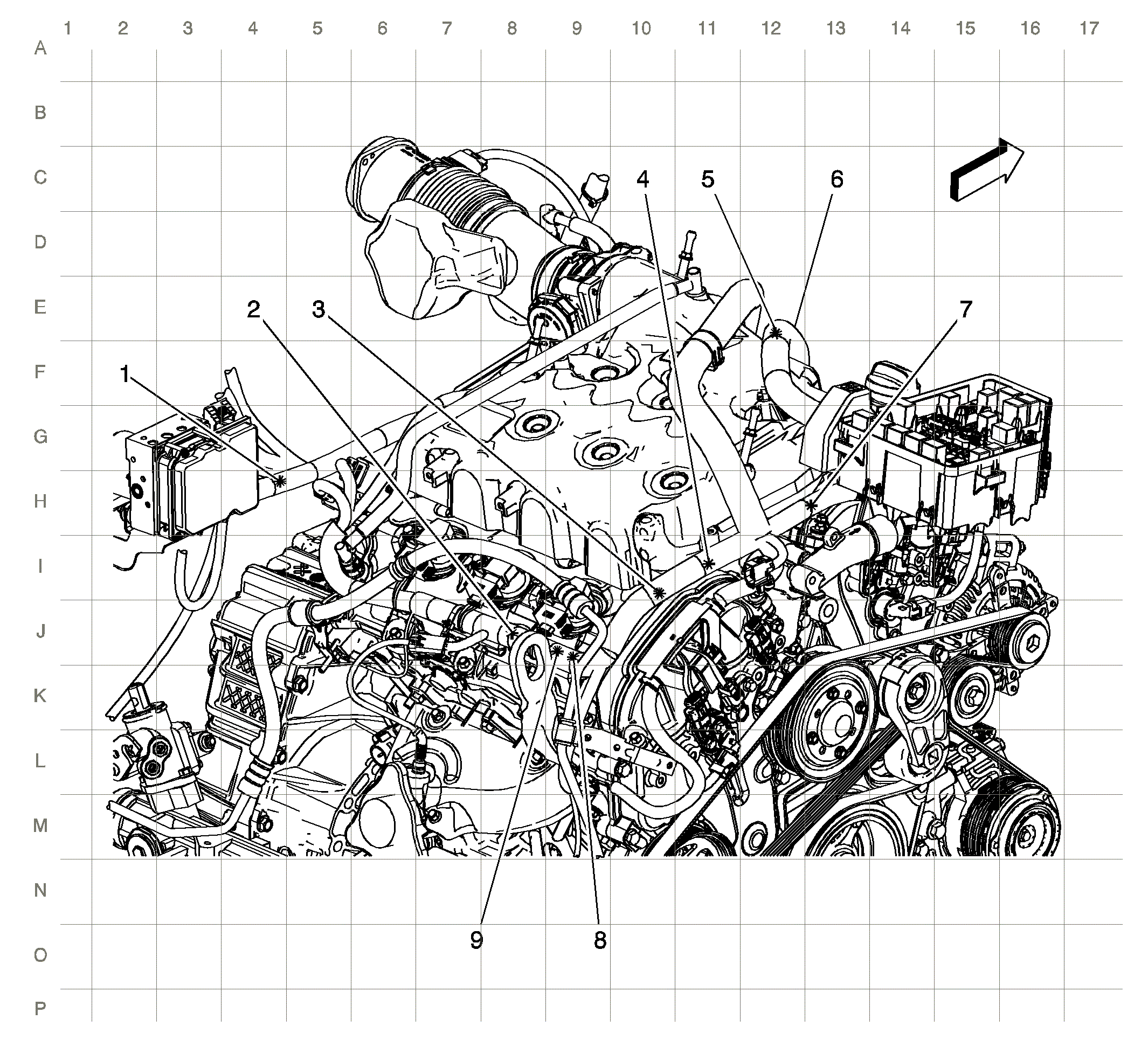

Fig 1: Engine Harness Splice Routing - Rear

Courtesy of GENERAL MOTORS COMPANY

Items
1. J117 (TSH or T26)
2. J112
3. J141
4. J143
5. J132
6. J133
7. J140
8. J131
9. J144
