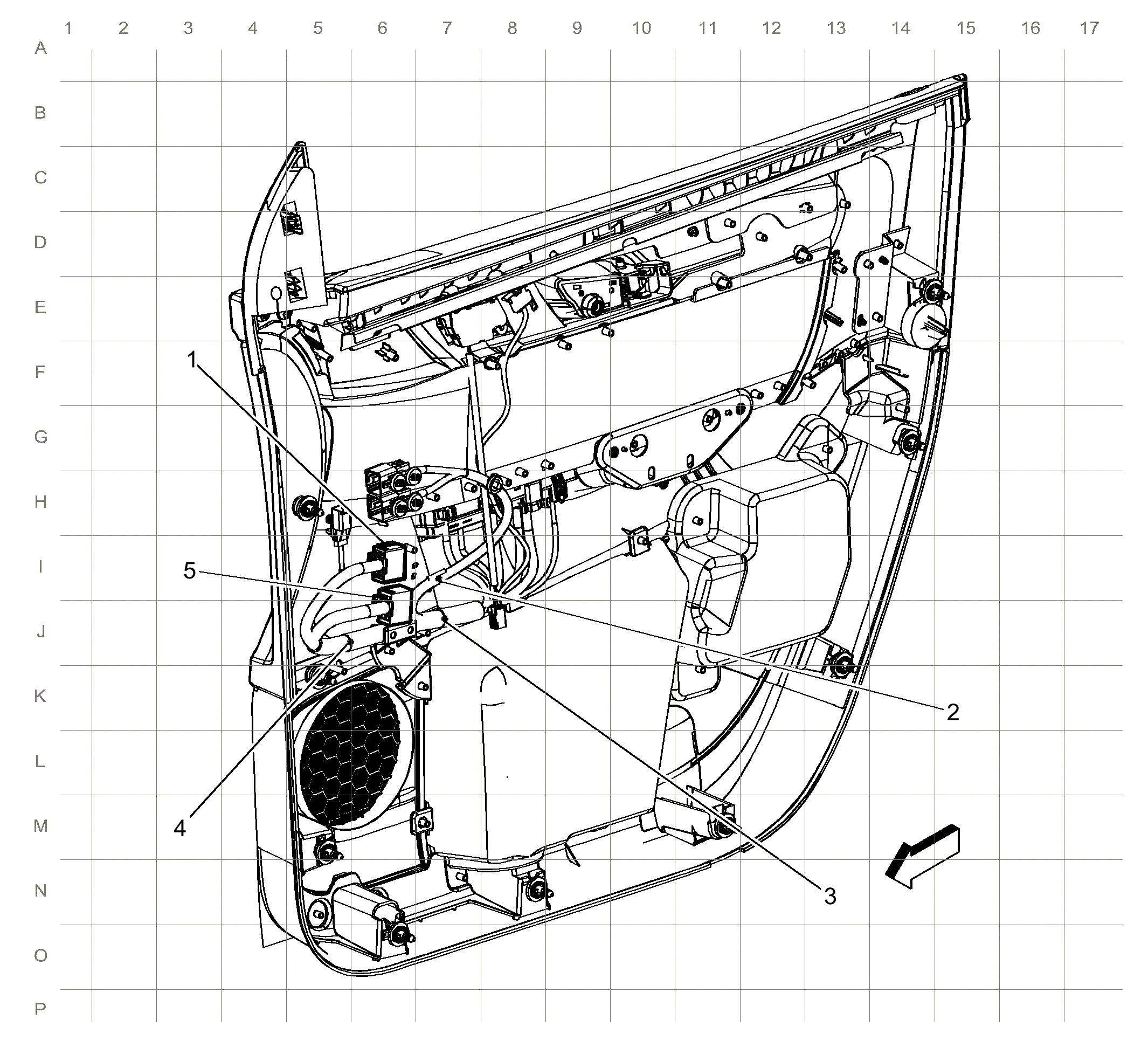

Driver Door Trim Harness Routing (Z88)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Items |
|---|
| 1. X555 X555 Driver Door Trim Harness to Driver Door Harness |
| 2. J575 |
| 3. J577 (without AXE) |
| 4. J575 |
| 5. X553 X553 Driver Door Trim Harness to Driver Door Harness |
