Body Harness Routing - Right Rear Passenger Compartment

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

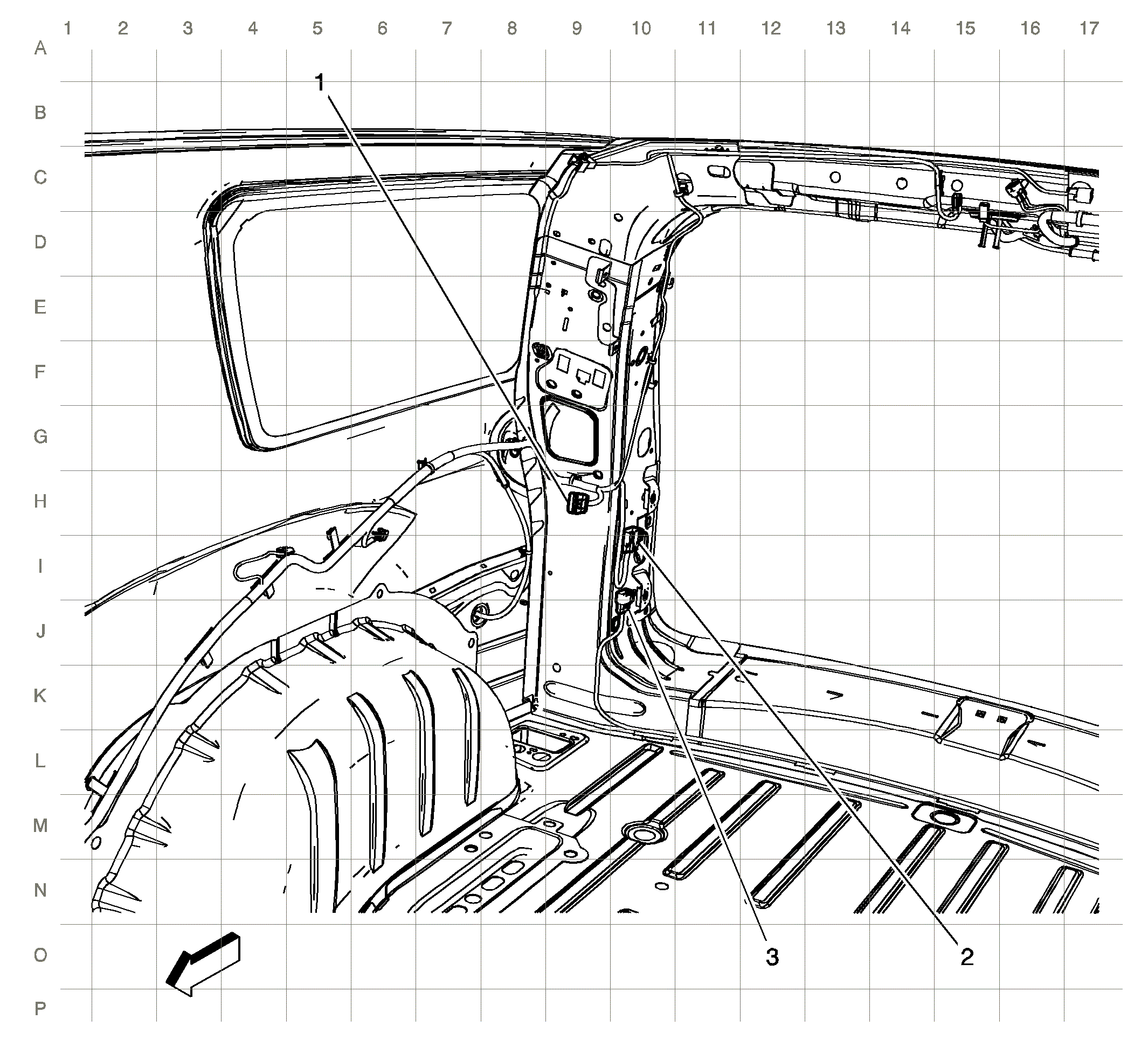

Fig 1: Body Harness Routing - Right Rear Passenger Compartment
GM2867718Courtesy of GENERAL MOTORS COMPANY
Items
1. X452 X452 Rear HVAC Harness to Body Harness
2. X420 X420 Body Harness to Right Tail Lamp Harness (W49+T89)X420 Body Harness to Right Tail Lamp Harness (W49-T89)
3. X422 X422 Body Harness to Headliner Harness
