Front of Vehicle - GMC

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Items
1. E2RF Side Marker Lamp - Right Front (X88 or Z88) E2RF Side Marker Lamp - Right Front (W49)E2RF Side Marker Lamp - Right Front (X88 or Z88)
2. E4H Headlamp - Right Low Beam E4H Headlamp - Right Low Beam (X88)E4H Headlamp - Right Low Beam (Z88 without TVD)
3. T2RR Antenna - Roof Rear
4. E4G Headlamp - Left Low Beam E4G Headlamp - Left Low Beam (X88)E4G Headlamp - Left Low Beam (Z88 without TVD)
5. E2LF Side Marker Lamp - Left Front (X88 or Z88) E2LF Side Marker Lamp - Left Front (W49)E2LF Side Marker Lamp - Left Front (X88 or Z88)
6. E4C Daytime Running Lamp - Left (T61) E4C Daytime Running Lamp - Left (W49 or Z88 with T61)
7. E4LF Turn Signal Lamp - Left Front (Z88) E4LF Turn Signal Lamp - Left Front (W49 or Z88)
8. E29LF Fog Lamp - Left Front (T96) E29LF Fog Lamp - Left Front
9. B9 Ambient Air Temperature Sensor (CJ2) B9 Ambient Air Temperature Sensor
10. E29RF Fog Lamp - Right Front (T96) E29RF Fog Lamp - Right Front (Z88)
11. E4RF Turn Signal Lamp - Right Front E4RF Turn Signal Lamp - Right Front (W49 or Z88)
12. E4D Daytime Running Lamp - Right (T61) E4D Daytime Running Lamp - Right (W49 or Z88 with T61)

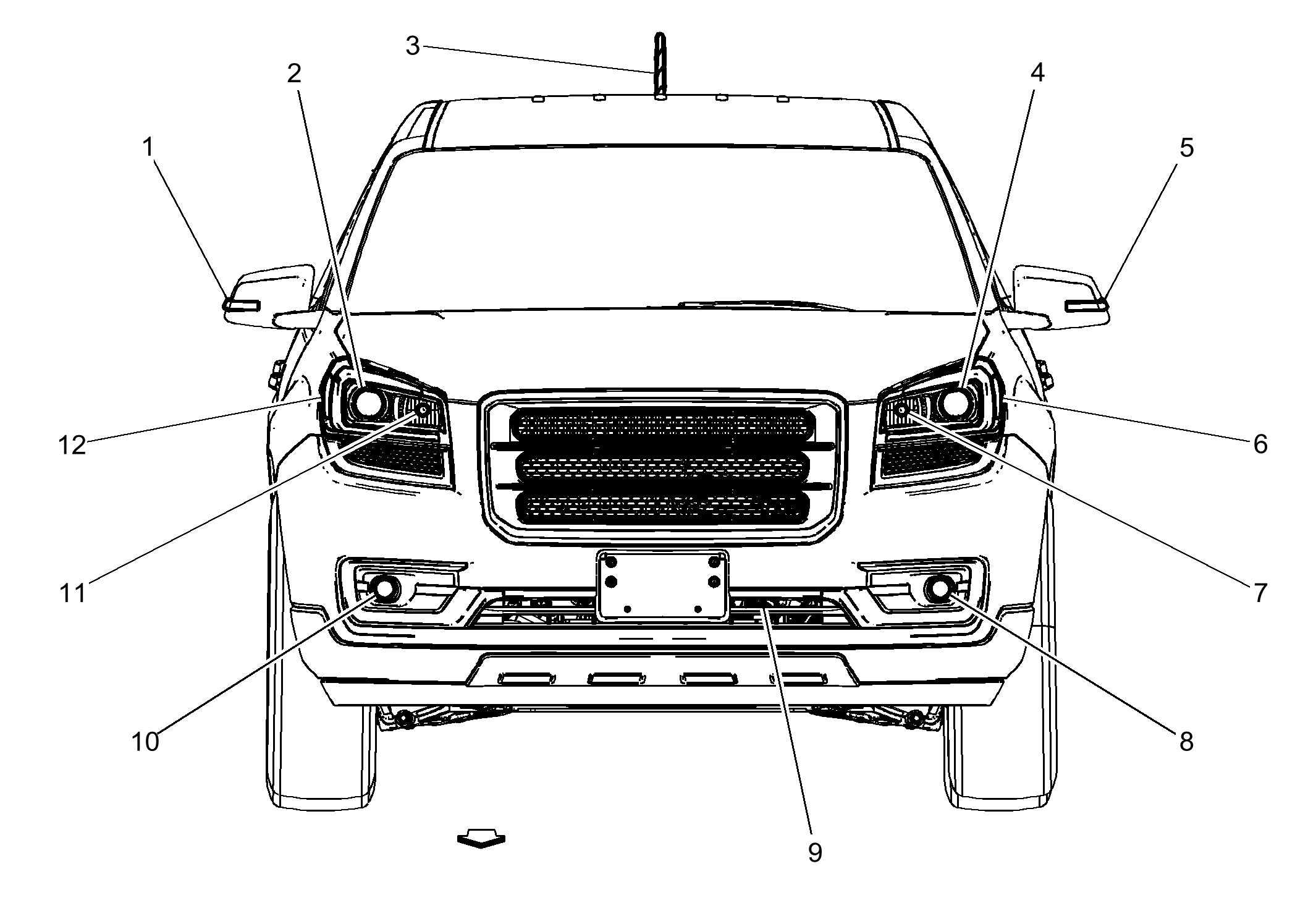

Fig 1: Front of Vehicle - GMC

Courtesy of GENERAL MOTORS COMPANY
