Front of Vehicle - Chevrolet

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

Items
1. E2RF Side Marker Lamp - Right Front (X88 or Z88) E2RF Side Marker Lamp - Right Front (W49)E2RF Side Marker Lamp - Right Front (X88 or Z88)
2. E4H Headlamp - Right Low Beam E4H Headlamp - Right Low Beam (X88)E4H Headlamp - Right Low Beam (Z88 without TVD)
3. T2RR Antenna - Roof Rear
4. E4G Headlamp - Left Low Beam E4G Headlamp - Left Low Beam (X88)E4G Headlamp - Left Low Beam (Z88 without TVD)
5. E2LF Side Marker Lamp - Left Front (X88 or Z88) E2LF Side Marker Lamp - Left Front (W49)E2LF Side Marker Lamp - Left Front (X88 or Z88)
6. E2LF Side Marker Lamp - Left Front (X88 or Z88) E2LF Side Marker Lamp - Left Front (W49)E2LF Side Marker Lamp - Left Front (X88 or Z88)
7. E4E Headlamp - Left High Beam E4E Headlamp - Left High Beam (X88)E4E Headlamp - Left High Beam (Z88 without TVD)
8. E4N Park/Turn Signal Lamp - Left (X88) E4N Park/Turn Signal Lamp - Left
9. E29LF Fog Lamp - Left Front (T96) E29LF Fog Lamp - Left Front
10. B9 Ambient Air Temperature Sensor (CJ2) B9 Ambient Air Temperature Sensor
11. E29RF Fog Lamp - Right Front (T96) E29RF Fog Lamp - Right Front (Z88)
12. E4P Park/Turn Signal Lamp - Right (X88) E4P Park/Turn Signal Lamp - Right (X88)
13. E4F Headlamp - Right High Beam E4F Headlamp - Right High Beam (X88)E4F Headlamp - Right High Beam (Z88 without TVD)
14. E2RF Side Marker Lamp - Right Front (X88 or Z88) E2RF Side Marker Lamp - Right Front (W49)E2RF Side Marker Lamp - Right Front (X88 or Z88)

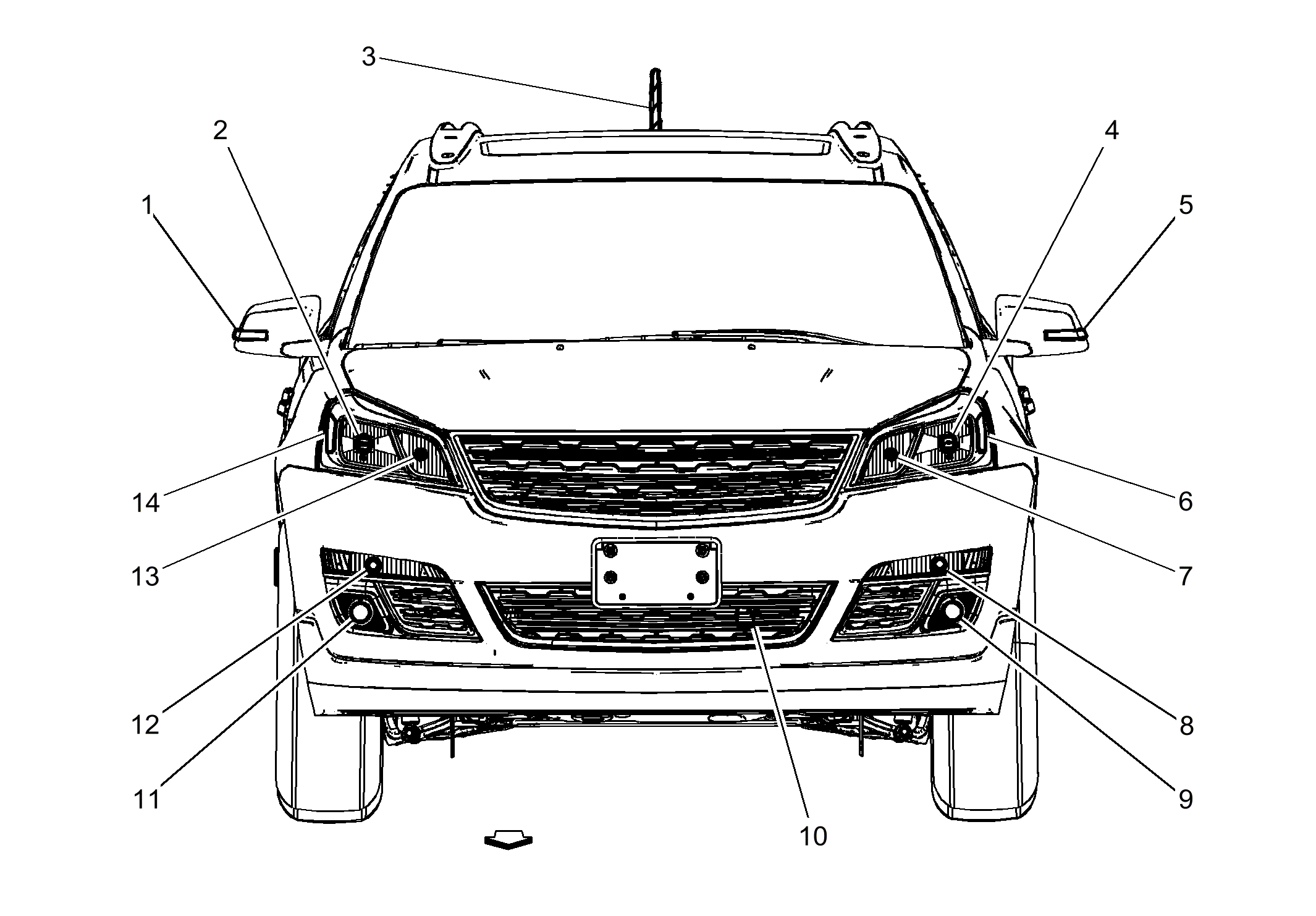

Fig 1: Front of Vehicle - Chevrolet

Courtesy of GENERAL MOTORS COMPANY
