Rear of the Vehicle (X88)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

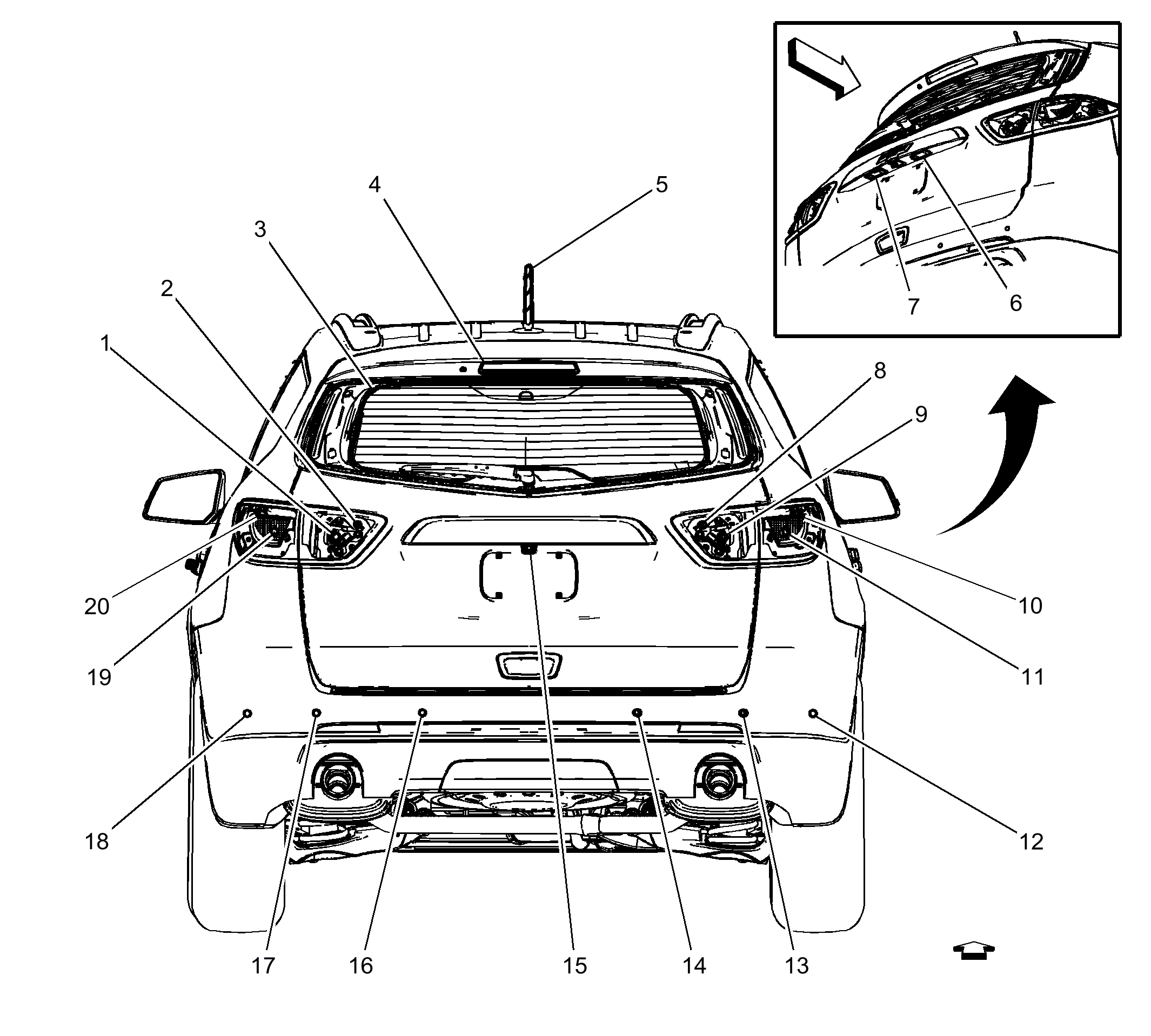

Rear of the Vehicle (X88)
| Items |
|---|
| 1. E5A Backup Lamp - Left E5A Backup Lamp - Left (X88) |
| 2. E5E Tail Lamp - Left E5E Tail Lamp - Left (W49) |
| 3. E18 Rear Defogger Grid E18 Rear Defogger Grid X1 |
| 4. E6 Center High Mounted Stop Lamp E6 Center High Mounted Stop Lamp (X88/Z88) |
| 5. T2RR Antenna - Roof Rear |
| 6. E7R License Plate Lamp - Right E7R License Plate Lamp - Right |
| 7. E7L License Plate Lamp - Left E7L License Plate Lamp - Left |
| 8. E5F Tail Lamp - Right E5F Tail Lamp - Right (W49) |
| 9. E5B Backup Lamp - Right E5B Backup Lamp - Right (X88) |
| 10. E5AB Tail/Stop Lamp - Right |
| 11. E4RR Turn Signal Lamp - Right Rear (X88) |
| 12. B94R Side Object Sensor - Right (UFT) B94R Side Object Sensor - Right |
| 13. B78H Rear Object Sensor - Right Outer (UD7) B78H Rear Object Sensor - Right Outer |
| 14. B78F Rear Object Sensor - Right Middle (UD7) B78F Rear Object Sensor - Right Middle |
| 15. B87 Rearview Camera (UVC) B87 Rearview Camera |
| 16. B78E Rear Object Sensor - Left Middle (UD7) B78E Rear Object Sensor - Left Middle |
| 17. B78G Rear Object Sensor - Left Outer (UD7) B78G Rear Object Sensor - Left Outer |
| 18. B94L Side Object Sensor - Left (UFT) B94L Side Object Sensor - Left |
| 19. E4LR Turn Signal Lamp - Left Rear (X88) |
| 20. E5AA Tail/Stop Lamp - Left |
