Roof Panel Joint Rear Finish Molding Replacement (Enclave)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
Preliminary Procedure
Remove the luggage carrier side rail. |
| 1 |

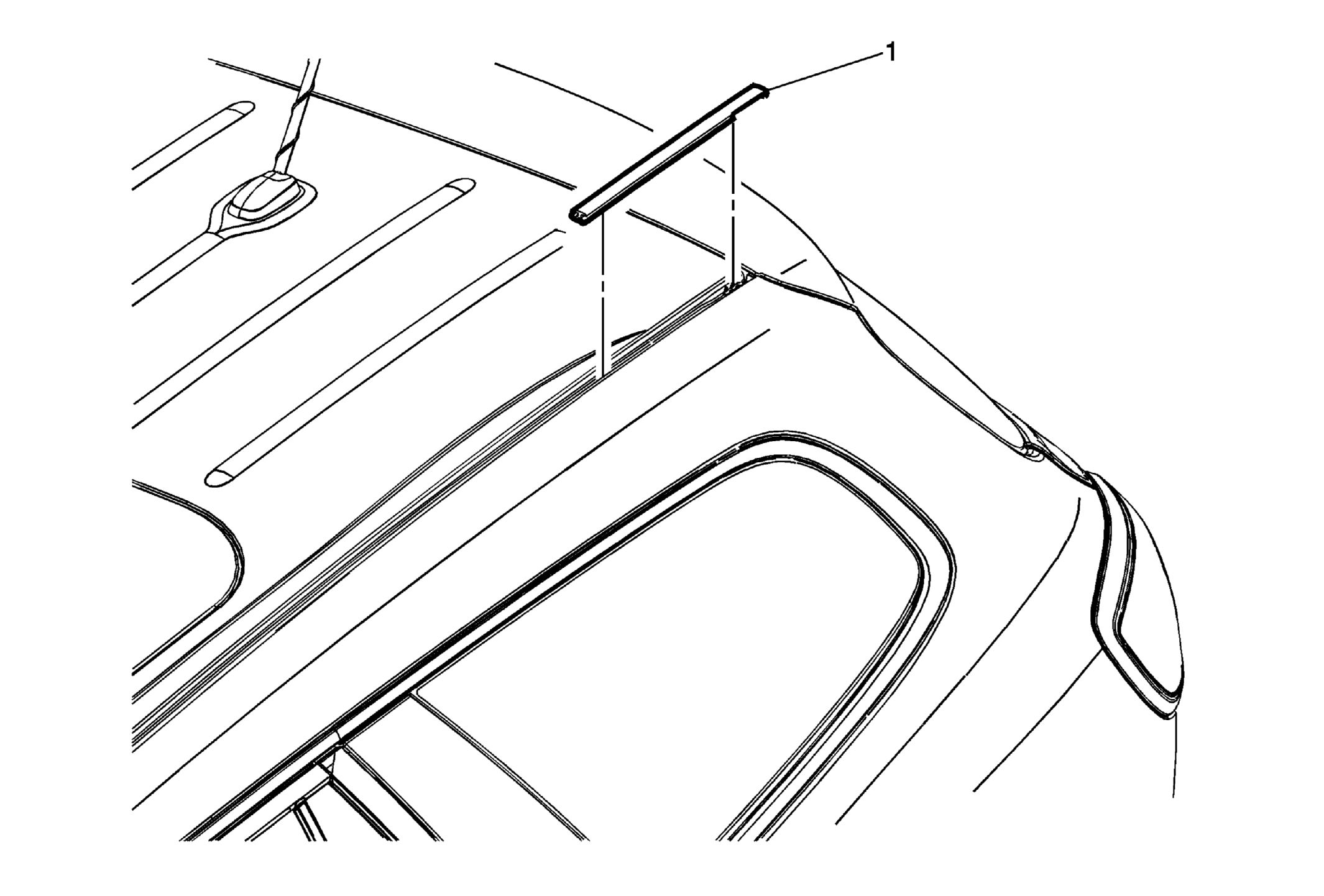

Roof Panel Joint Rear Finish Molding
Procedure
Using a suitable plastic flat bladed tool pry the roof panel joint rear finish molding from the retainer in the roof ditch. |
