Rocker Panel Extension Molding Replacement (Acadia, Enclave, Traverse - Left)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

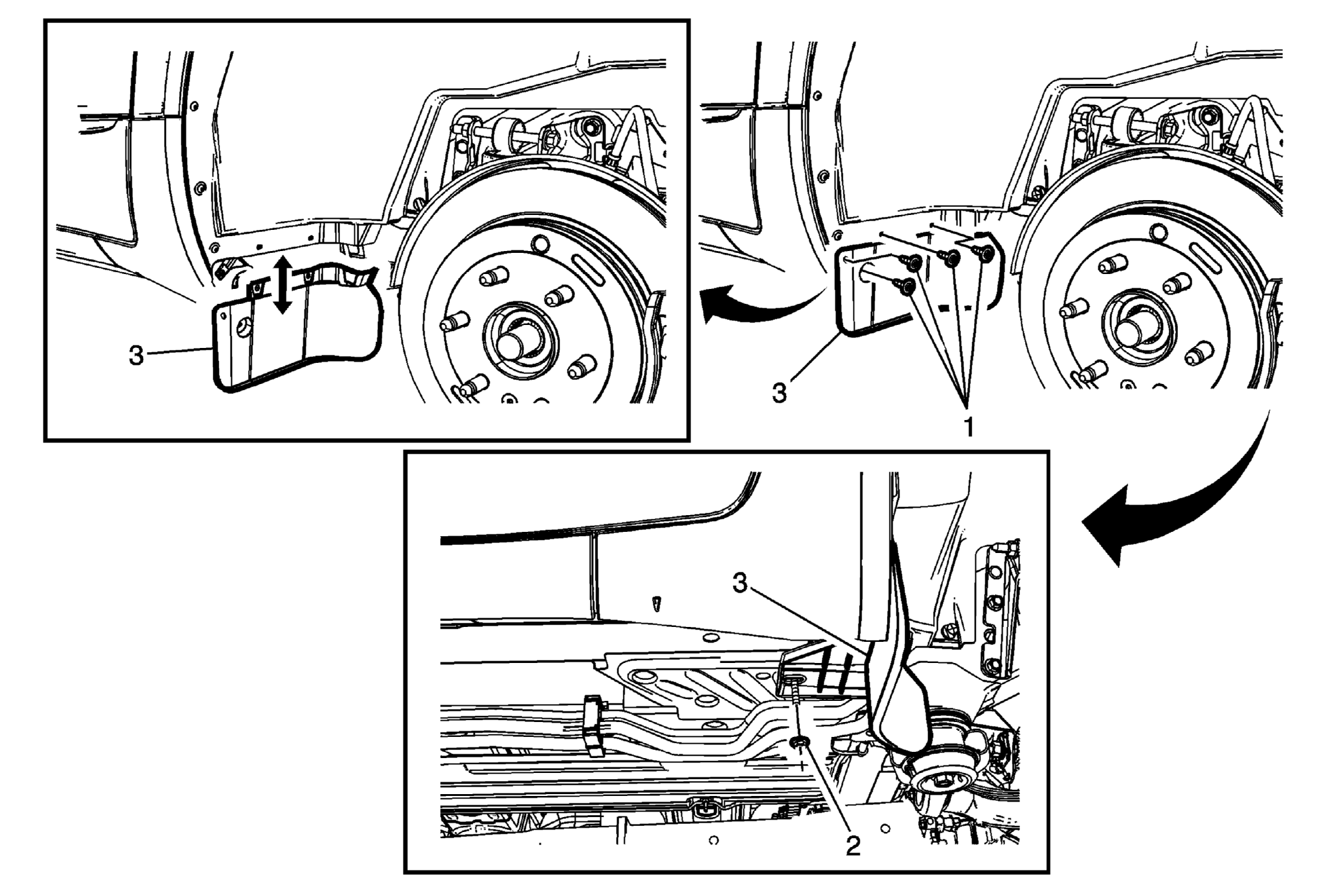

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation . |
|
| 1 | Rocker Panel Extension Molding Screw (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 2 | Rocker Panel Extension Molding Nut |
| 3 | Rocker Panel Extension Molding |
