Liftgate Window Side Reveal Molding Sealing Strip Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

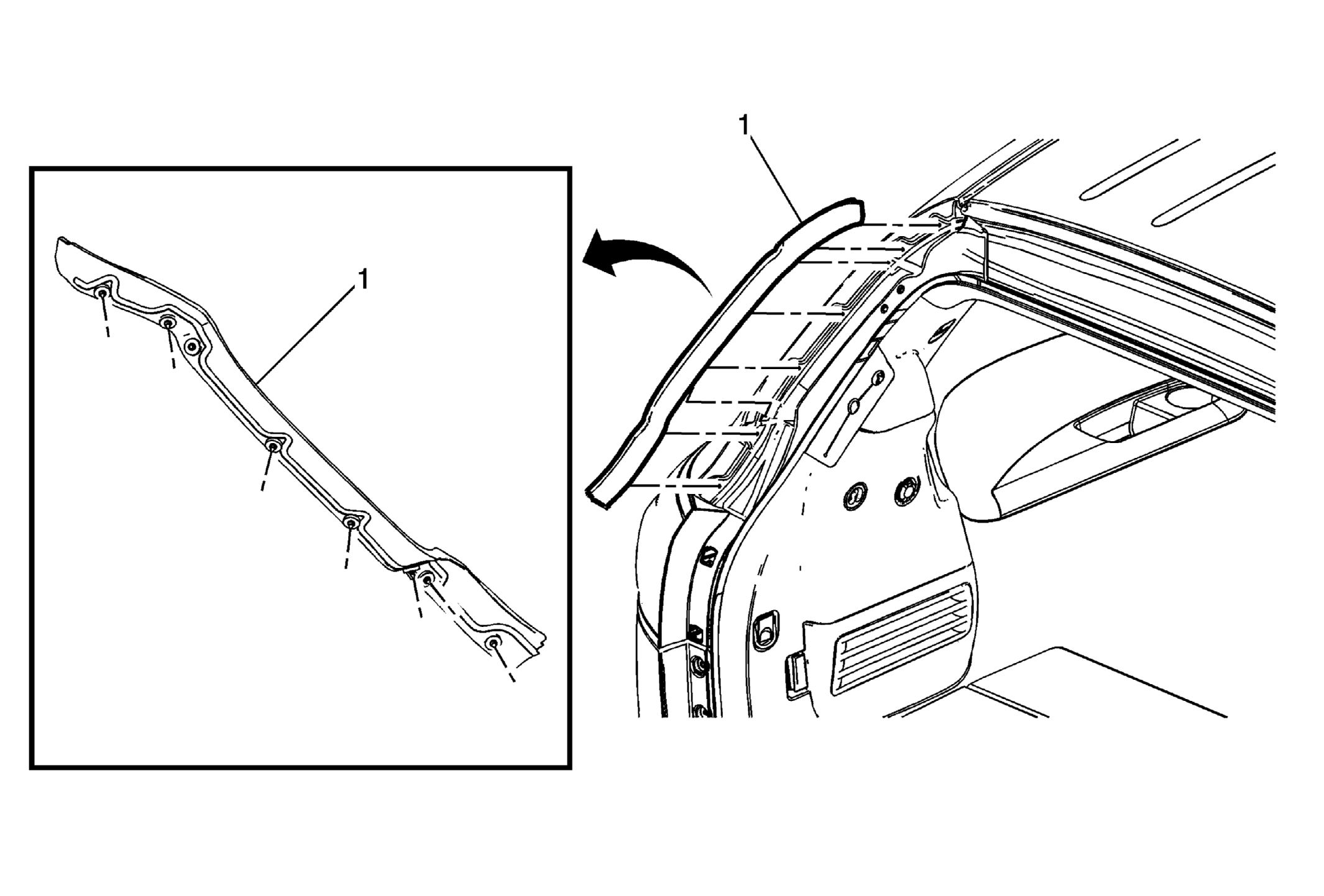

Fig 1: Liftgate Window Side Reveal Molding Sealing Strip (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Open liftgate.
1	Liftgate Window Side Reveal Molding Sealing Strip Procedure Starting from the bottom use a trim-type release tool release the 8 retainers and remove from vehicle.
