Liftgate Emblem/Nameplate Replacement (Acadia GMC)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

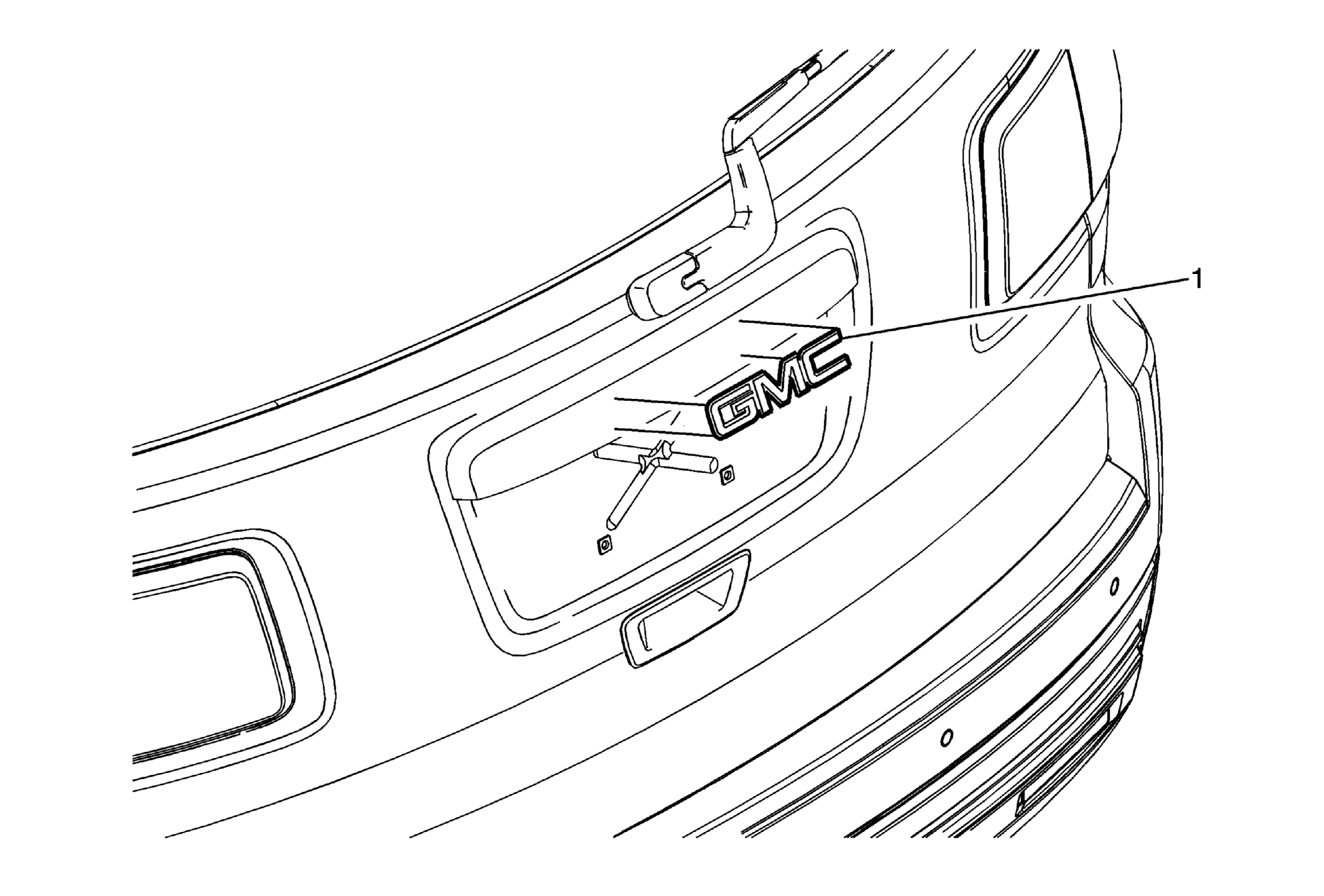

Fig 1: Liftgate Emblem/Nameplate (Acadia GMC)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Liftgate Emblem/Nameplate (Acadia GMC) CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength. Use a heat gun or equivalent to remove the liftgate nameplate. Use a plastic flat bladed tool to assist in removal. Clean any remaining residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water. Wipe surface dry with a clean lint-free towel. When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Using the palm of the hand, wet out the liftgate nameplate to the liftgate applique to ensure full adhesion is made.

Callout

Component Name

Liftgate Emblem/Nameplate (Acadia GMC)

CAUTION:

Refer to Exterior Trim Emblem Removal Caution .

Procedure

The part and surface should be 21°C (70°F) prior to installation. The vehicle should remain 21°C (70°F) for one hour after assembly to allow adhesive to develop sufficient bond strength.
Use a heat gun or equivalent to remove the liftgate nameplate. Use a plastic flat bladed tool to assist in removal.
Clean any remaining residue with a 50/50 mixture by volume of isopropyl alcohol and clean drinkable water. Wipe surface dry with a clean lint-free towel.
When removing protective liners from the adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Using the palm of the hand, wet out the liftgate nameplate to the liftgate applique to ensure full adhesion is made.
