Hood Side Molding Replacement (Enclave)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY
| Callout |
Component Name |
| 1 |

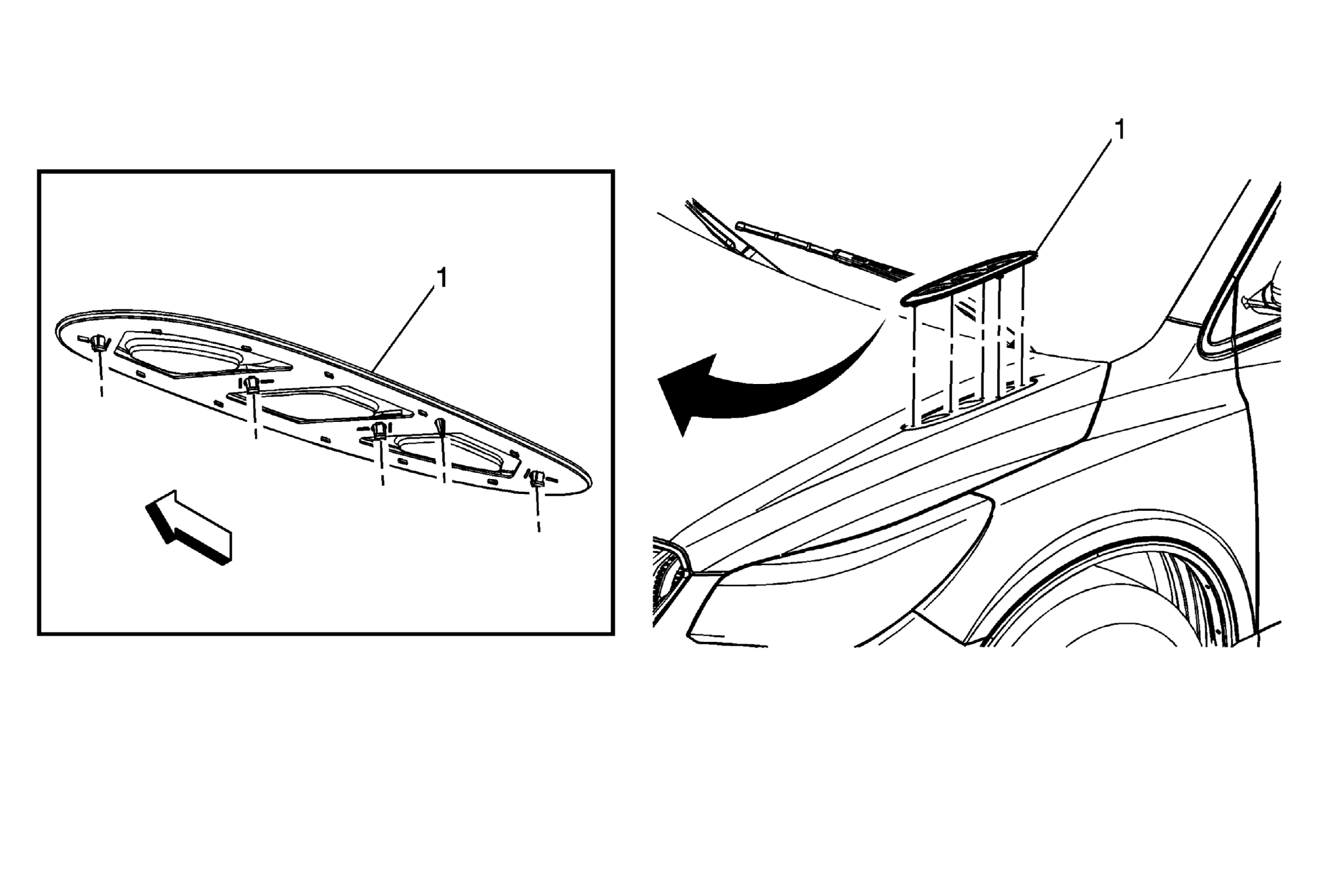

Hood Ornament Procedure
- Apply a suitable tape around the hood ornament.
- Using a suitable trim-type release tool start from the front edge of the hood ornament and release the 4 retainers.
- Pull the hood ornament from vehicle.
|
