Headlamp Seal Replacement (Acadia)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

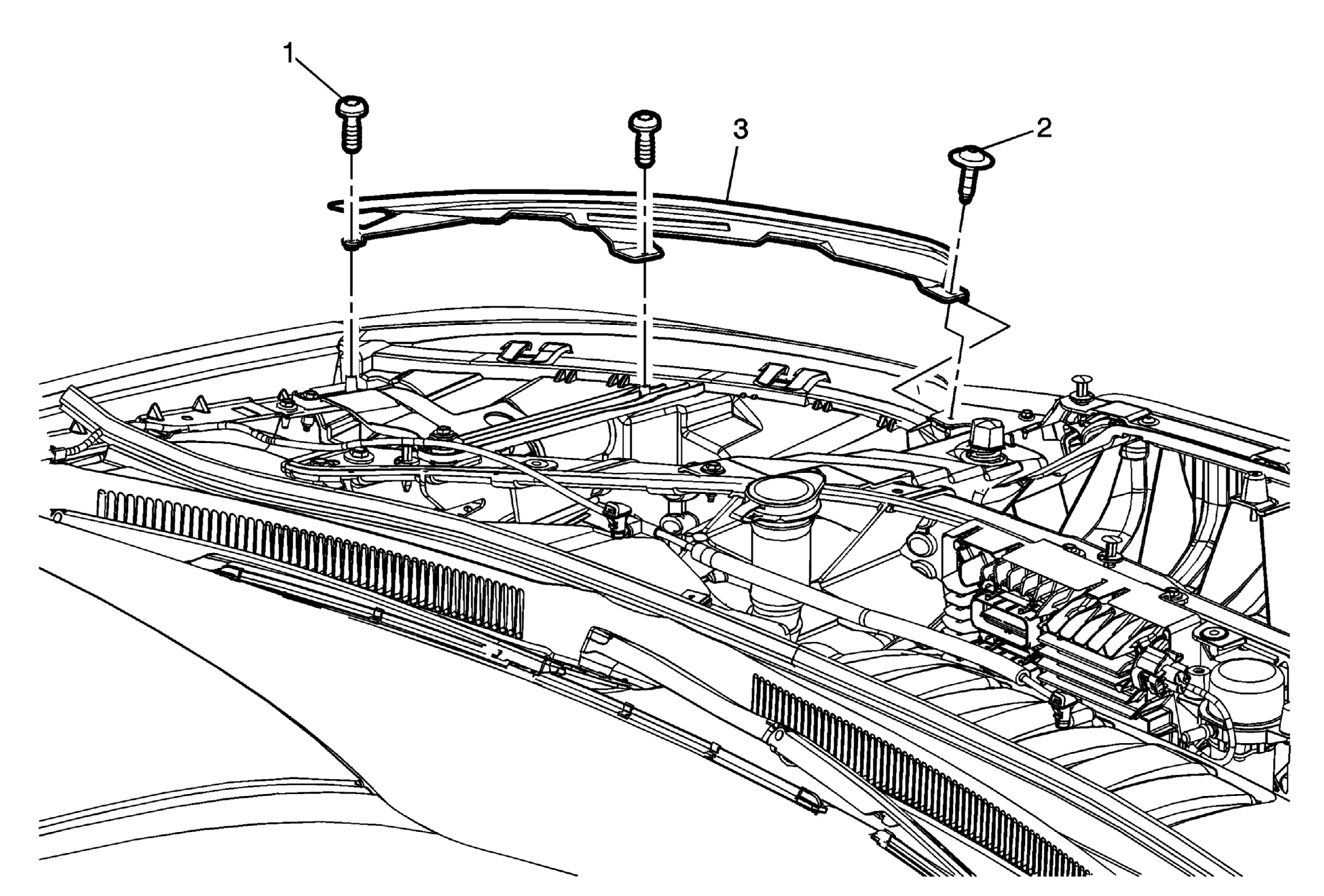

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front compartment sight shield. Refer to Front Compartment Front Sight Shield Replacement (Acadia) |
|
| 1 | Headlamp Seal Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Bumper Fascia Bolt (Qty: 1)
CAUTION:
Refer to Fastener Caution . |
| 3 | Headlamp Seal Procedure The inboard tab attaching to the front bumper fascia goes below the front bumper fascia tab. |
