Front Lower Grille Replacement (Acadia Outer)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Acadia) . |
|

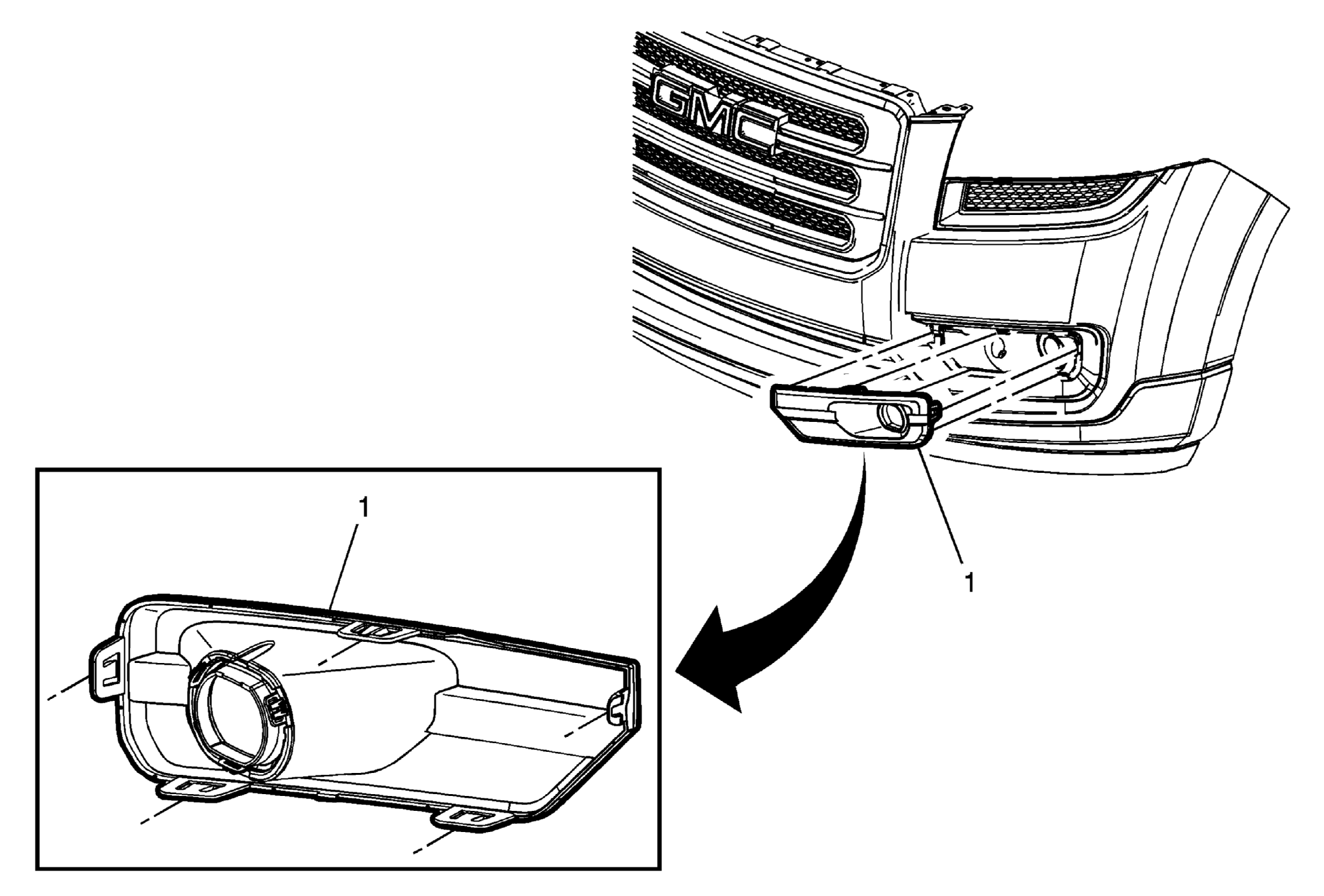

| 1 | Radiator Lower Grille Outer Procedure Release the 5 locking tabs from the radiator lower grille outer and pull from the front bumper fascia. |
