Stripe or Decal Removal

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

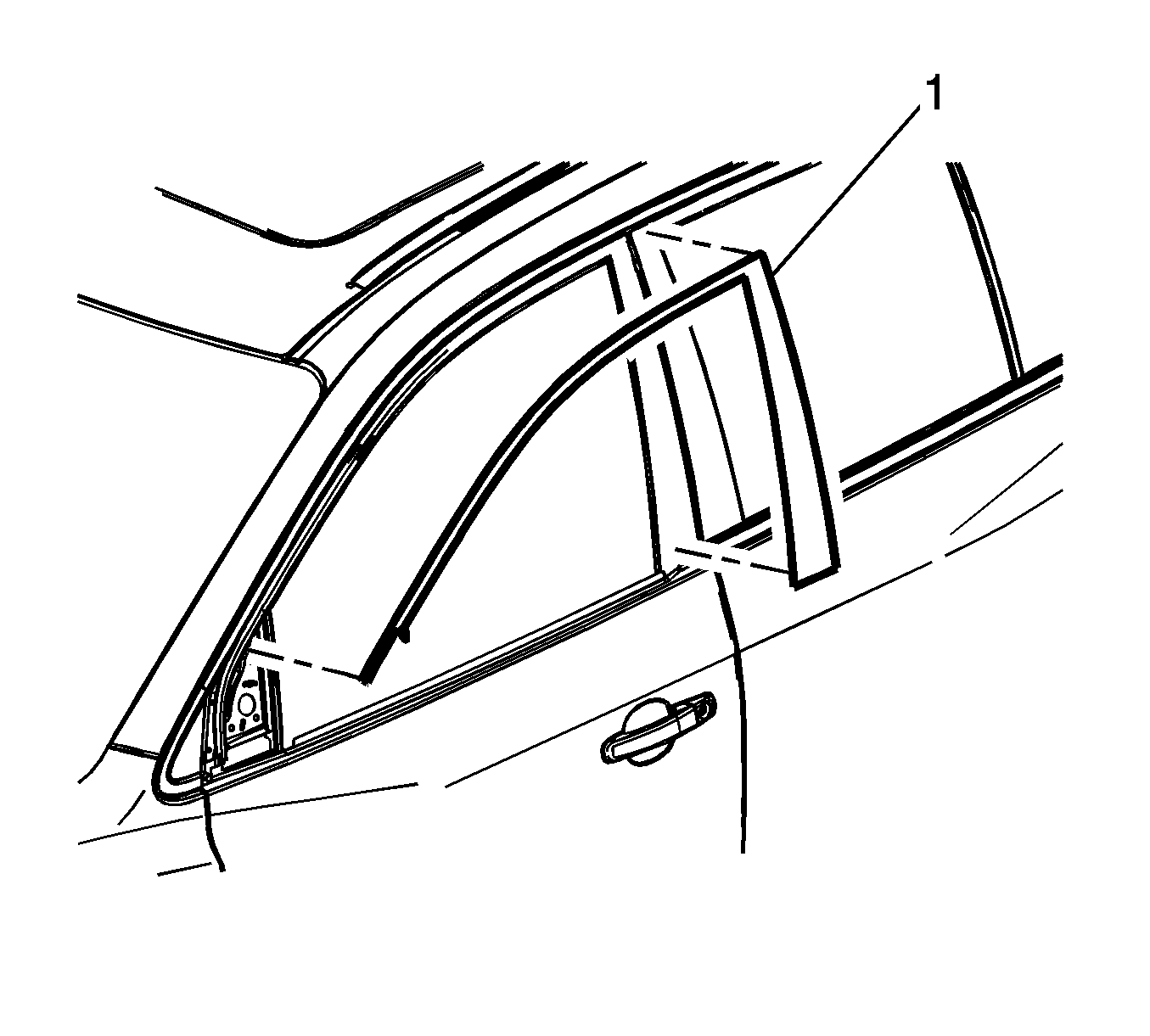

    Fig 1: Front Door Frame Applique
    GM2877101Courtesy of GENERAL MOTORS COMPANY
  1. Remove the following components:
    • Necessary moldings or trim panel
    • Molding attaching clips
    • Handles
    • Sidemarker lamps
    • Other stripe or decal overlapping parts
    • Front door frame applique (1)
  2. Clean the following areas as needed:
    • The repair surfaces
    • The adjacent panels
    • The openings
  3. Use 3M™ ScotchBrite molding adhesive remover disk 3M™ P/N 07502 or equivalent in order to remove the stripe or decal from the body panel.
  4. Use Varnish Makers and Painters (VM&P) Naptha to remove all traces of adhesive residue from the painted surfaces.
