Front Bumper Fascia Outer Grille Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

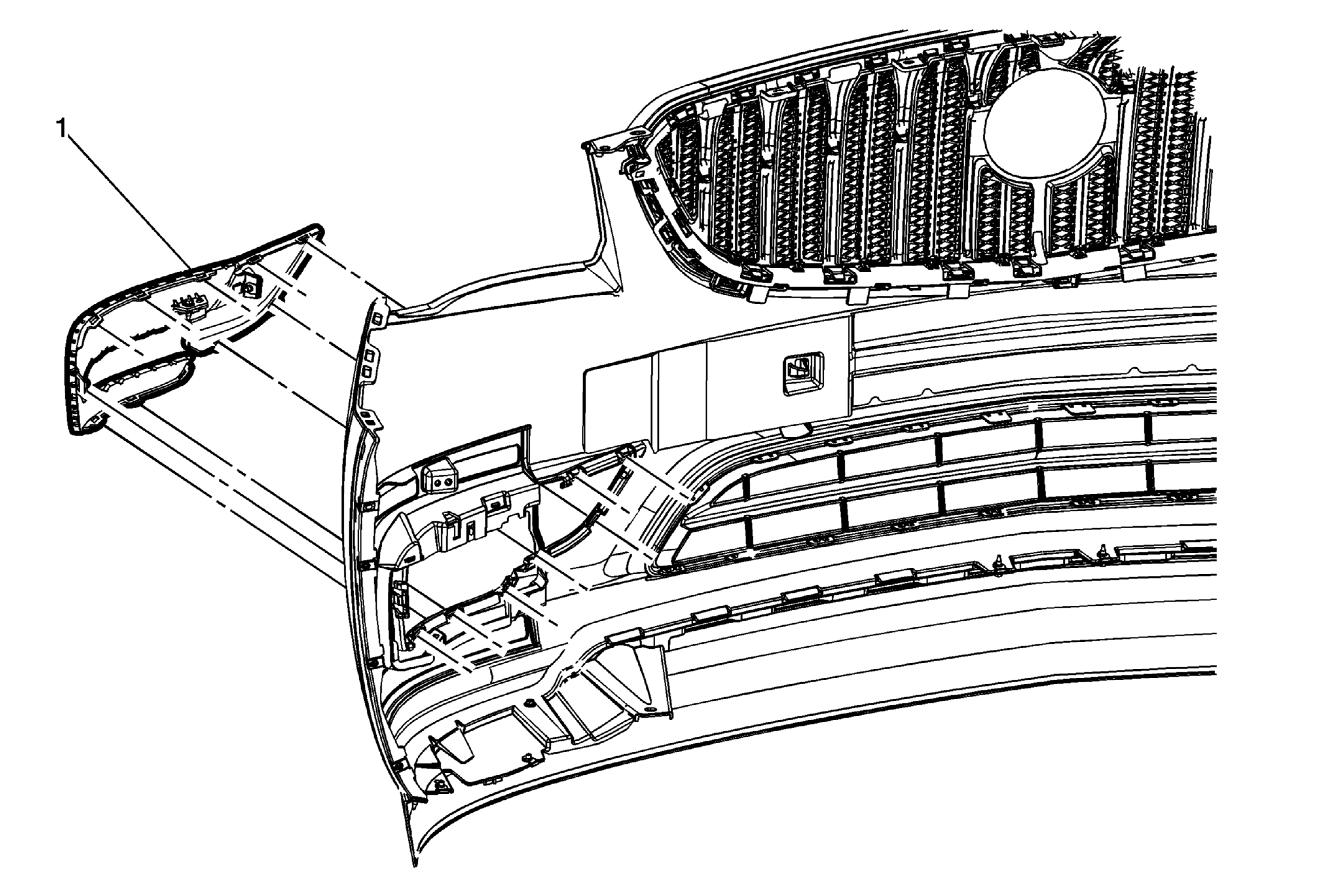

Fig 1: Front Bumper Fascia Outer Grille (Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Enclave) . Remove the parking lamp. Refer to Parking Lamp Replacement (Enclave) .
1	Front Bumper Fascia Outer Grille Procedure Release the 11 locking tabs from the radiator lower grille and pull from the front bumper fascia.

Callout

Component Name

Preliminary Procedure

Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Enclave) .
Remove the parking lamp. Refer to Parking Lamp Replacement (Enclave) .

Front Bumper Fascia Outer Grille
Procedure
Release the 11 locking tabs from the radiator lower grille and pull from the front bumper fascia.
