Front Bumper Fascia Emblem/Nameplate Replacement (Enclave)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the radiator upper grille. Refer to Front Upper Grille Replacement (Enclave) . |
|

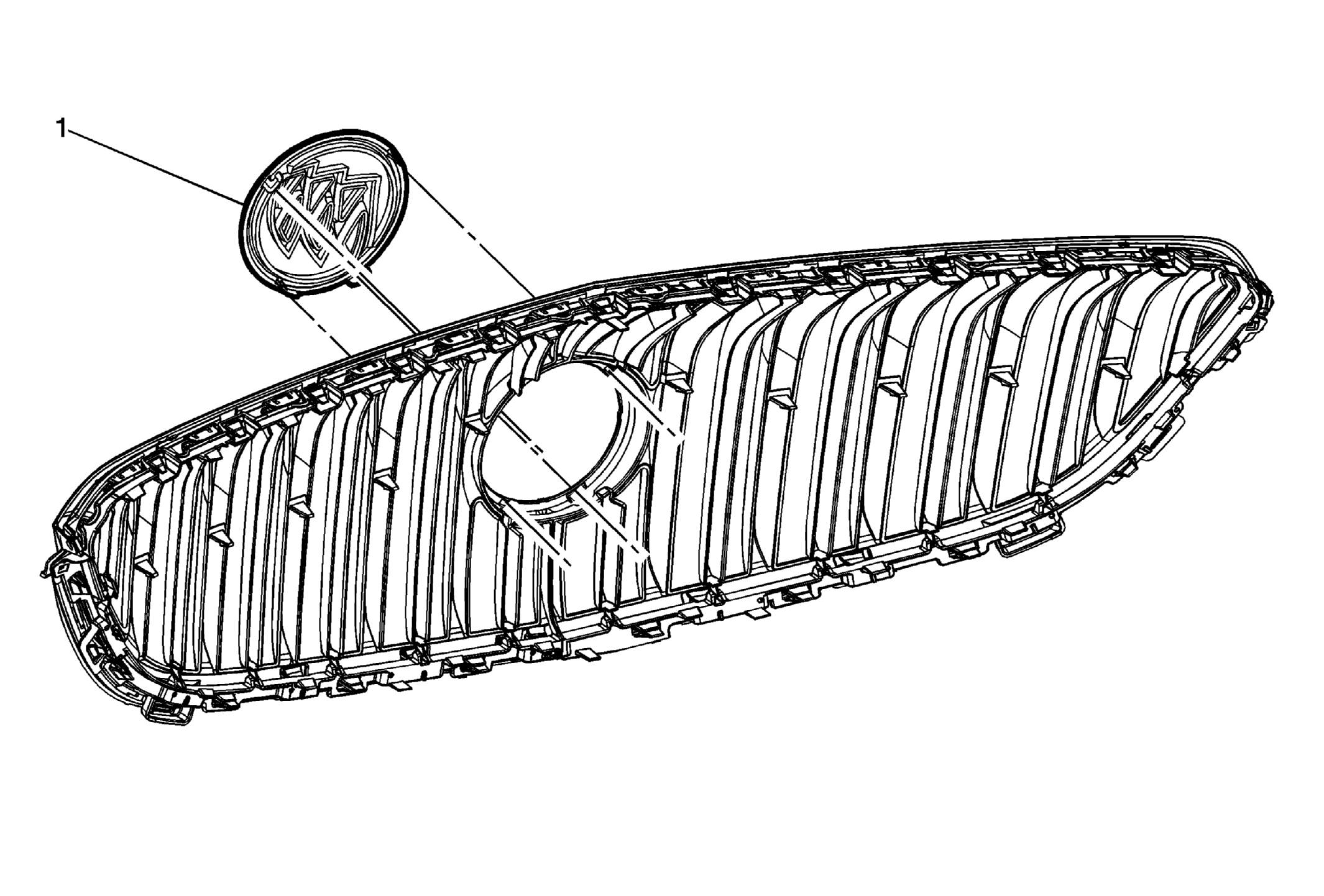

| 1 | Front Bumper Fascia Emblem/Nameplate Procedure Rotate the front bumper fascia emblem in a counter-clockwise direction pull from the radiator upper grille. |
