Body Side Emblem/Nameplate Replacement (Acadia)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

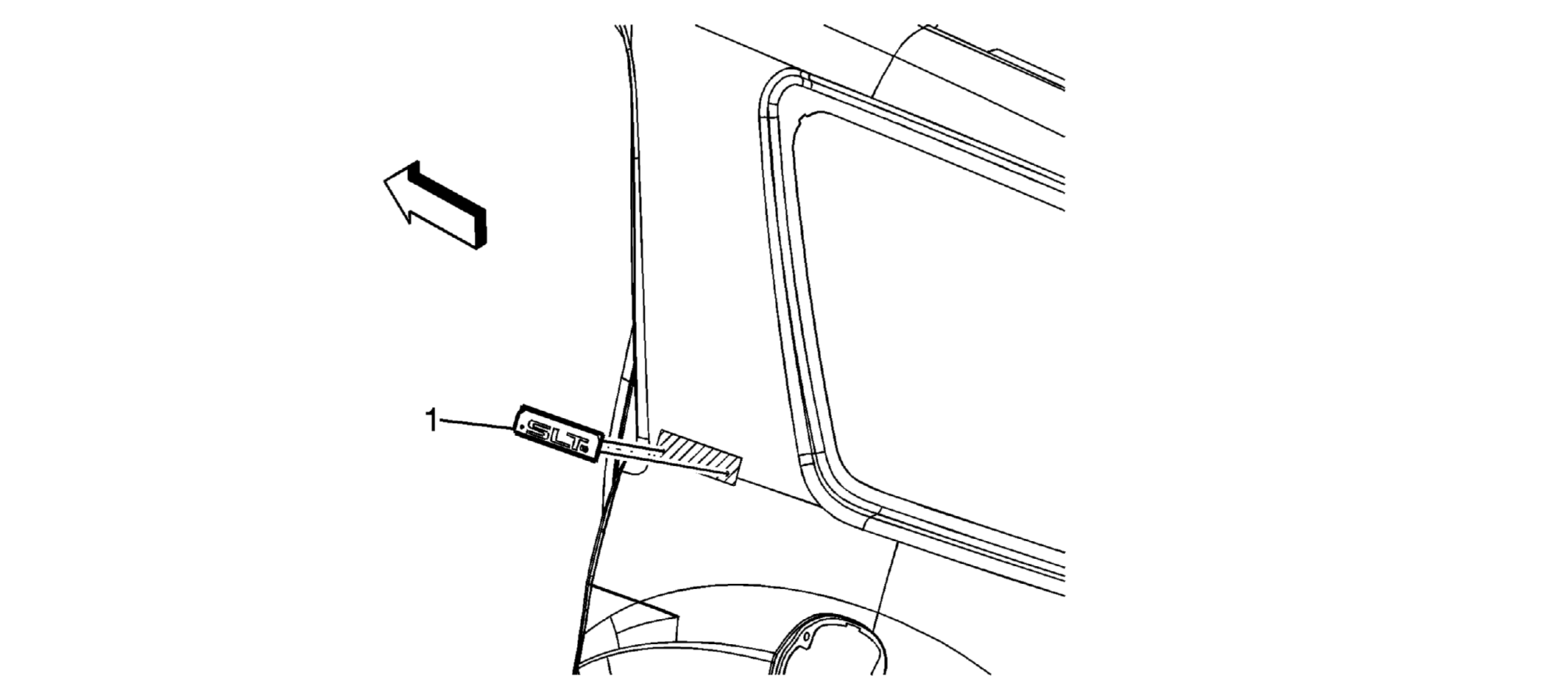

Fig 1: Body Side Emblem/Nameplate (Acadia)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Center Pillar Nameplate CAUTION: Refer to Exterior Trim Emblem Removal Caution . Procedure Use a heat gun or equivalent to remove the nameplate. Clean all adhesive from the bodyside, wipe surface dry with a clean lint-free towel prior to installing new nameplate. When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion. Ensure full adhesion of the nameplate to the bodyside is made.

Callout

Component Name

Center Pillar Nameplate

CAUTION:

Refer to Exterior Trim Emblem Removal Caution .

Procedure

Use a heat gun or equivalent to remove the nameplate. Clean all adhesive from the bodyside, wipe surface dry with a clean lint-free towel prior to installing new nameplate.
When removing protective liners from adhesive tape, be careful not to touch tape with hands and do not allow tape to come in contact with dirt or any foreign matter prior to adhesion.
Ensure full adhesion of the nameplate to the bodyside is made.
