Rear Bumper Step Pad Replacement (Traverse)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

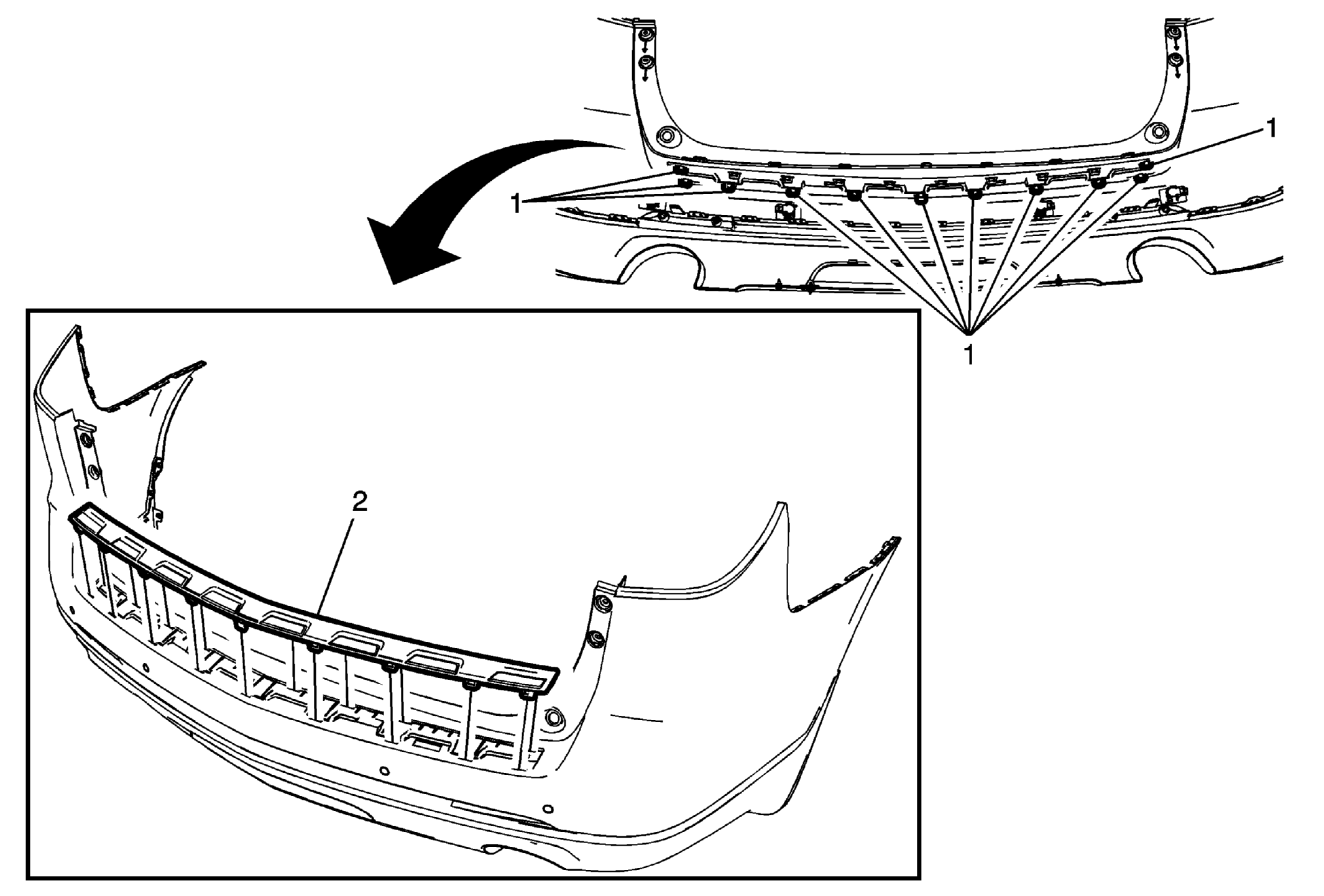

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper fascia. Refer to Rear Bumper Fascia Replacement (Traverse) . |
|
| 1 | Rear Bumper Center Step Pad Retainer (Qty: 11) |
| 2 | Rear Bumper Center Step Pad Procedure Carefully insert a small flat-bladed tool into the fascia step pad slot from the underside and depress the snaps one at a time and pull on the step pad at the same time to gradually remove the step pad from the rear fascia. |
