Rear Bumper Lower Fascia Replacement (Traverse)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

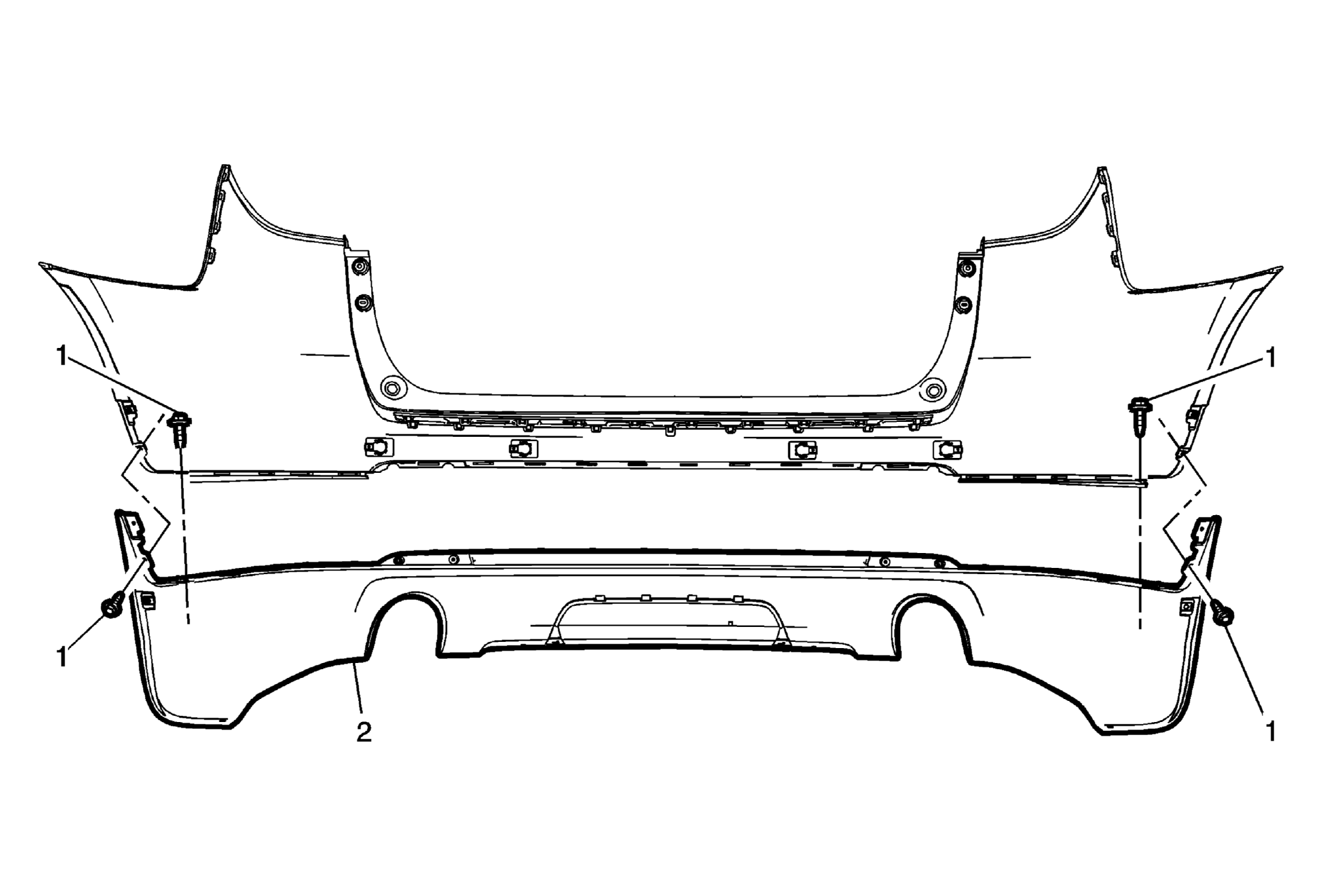

Fig 1: Rear Bumper Lower Fascia (Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear bumper energy absorber. Refer to Rear Bumper Fascia Energy Absorber Replacement (Acadia and Traverse) .
1	Rear Bumper Lower Fascia Bolt (Qty: 4) CAUTION: Refer to Fastener Caution .
2	Rear Bumper Lower Fascia Procedure Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the upper fascia. Transfer part as needed.

Callout

Component Name

Preliminary Procedure
Remove the rear bumper energy absorber. Refer to Rear Bumper Fascia Energy Absorber Replacement (Acadia and Traverse) .

Rear Bumper Lower Fascia Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Rear Bumper Lower Fascia

Procedure

Carefully push a small nylon wedge between the upper fascia and the lower fascia. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the lower fascia from the upper fascia.
Transfer part as needed.
