Rear Bumper Fascia Molding Replacement (Acadia)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the rear bumper fascia energy absorber. Refer to Front Bumper Fascia Energy Absorber Replacement (Acadia) . |
|

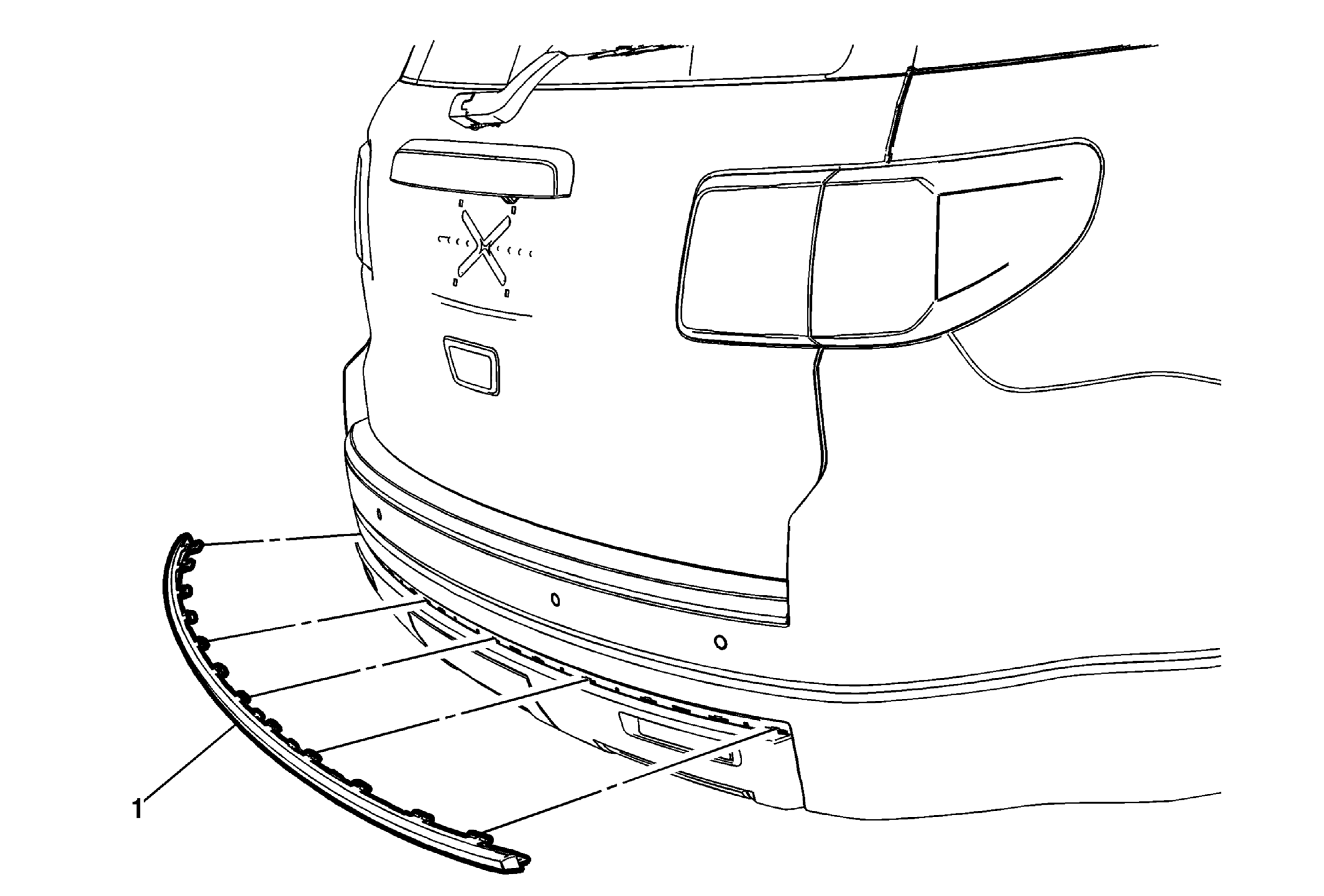

| 1 | Rear Bumper Fascia Molding Procedure Carefully push a small nylon wedge between the rear fascia and the fascia molding. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the fascia molding from the rear fascia. |
