Rear Bumper Fascia Insert Replacement (Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

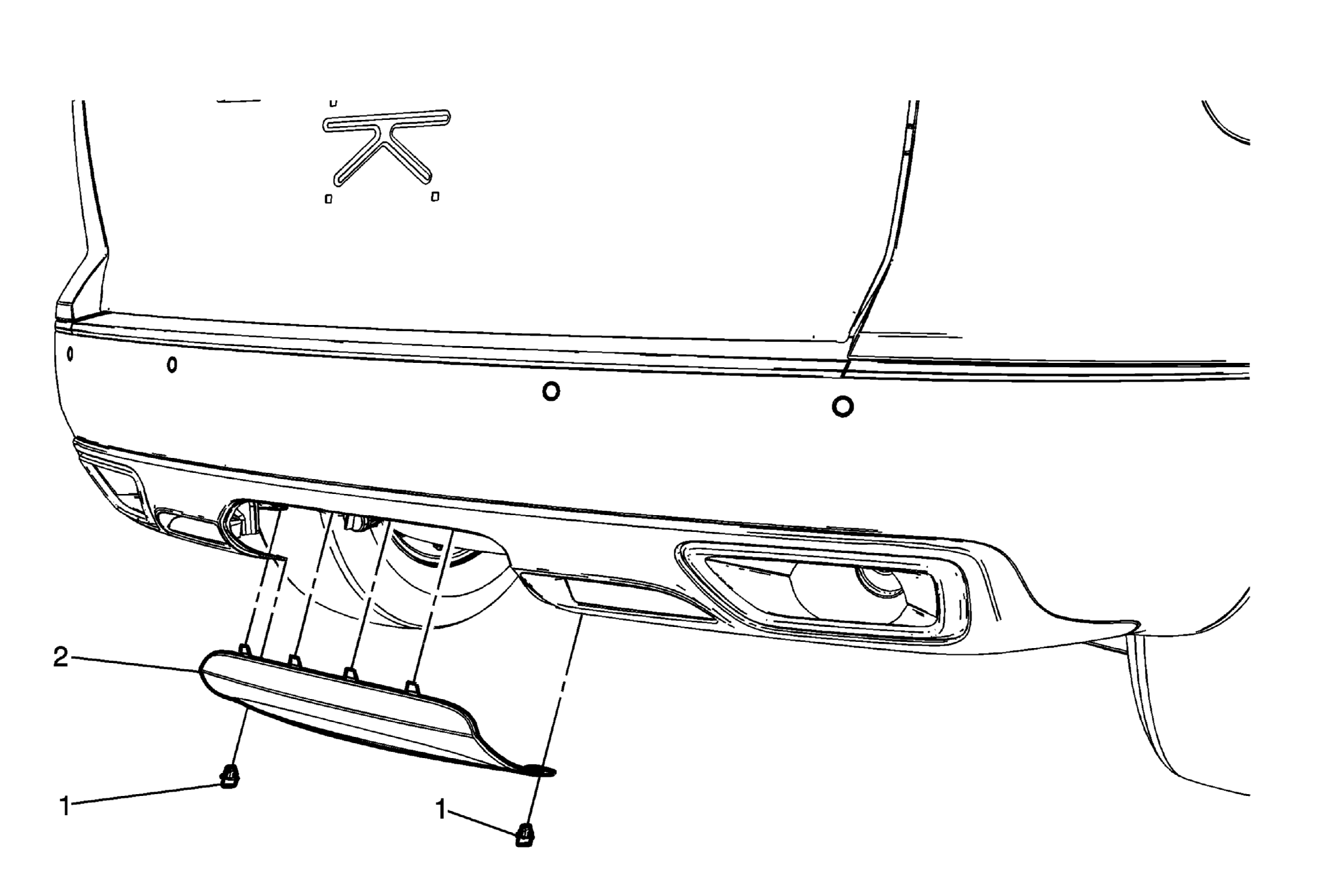

Fig 1: Rear Bumper Fascia Insert (Enclave)
GM2863885Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Bumper Fascia Insert Plastic Retainer (Qty: 2)
Procedure
Turn the retainers to remove the insert.
2 Rear Bumper Fascia Insert
