Front Bumper Fascia Molding Replacement (Acadia)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

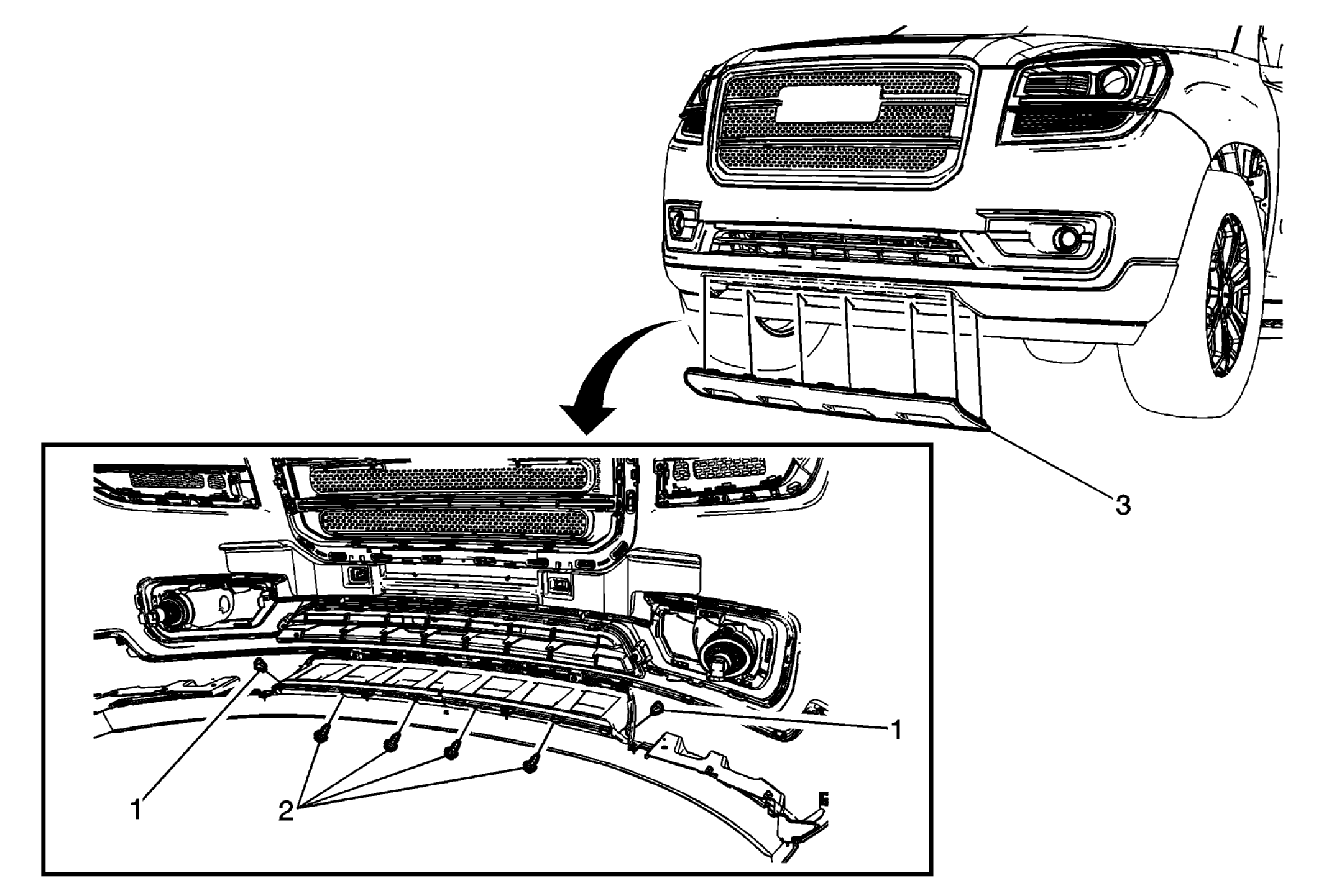

| Callout | Component Name |
|---|---|
| 1 | Front Bumper Fascia Molding Retainer (Qty: 2) |
| 2 | Front Bumper Fascia Molding Bolt (Qty: 4)
CAUTION:
Refer to Fastener Caution . |
| 3 | Front Bumper Fascia Molding Procedure Carefully push a small nylon wedge between the front fascia and the fascia molding. Insert a small flat-bladed tool into the fascia slot and depress the tabs one at a time and pull on the fascia at the same time to gradually remove the fascia molding from the front fascia. |
