Front Bumper Fascia Headlamp Opening Flange Support Replacement (Acadia)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

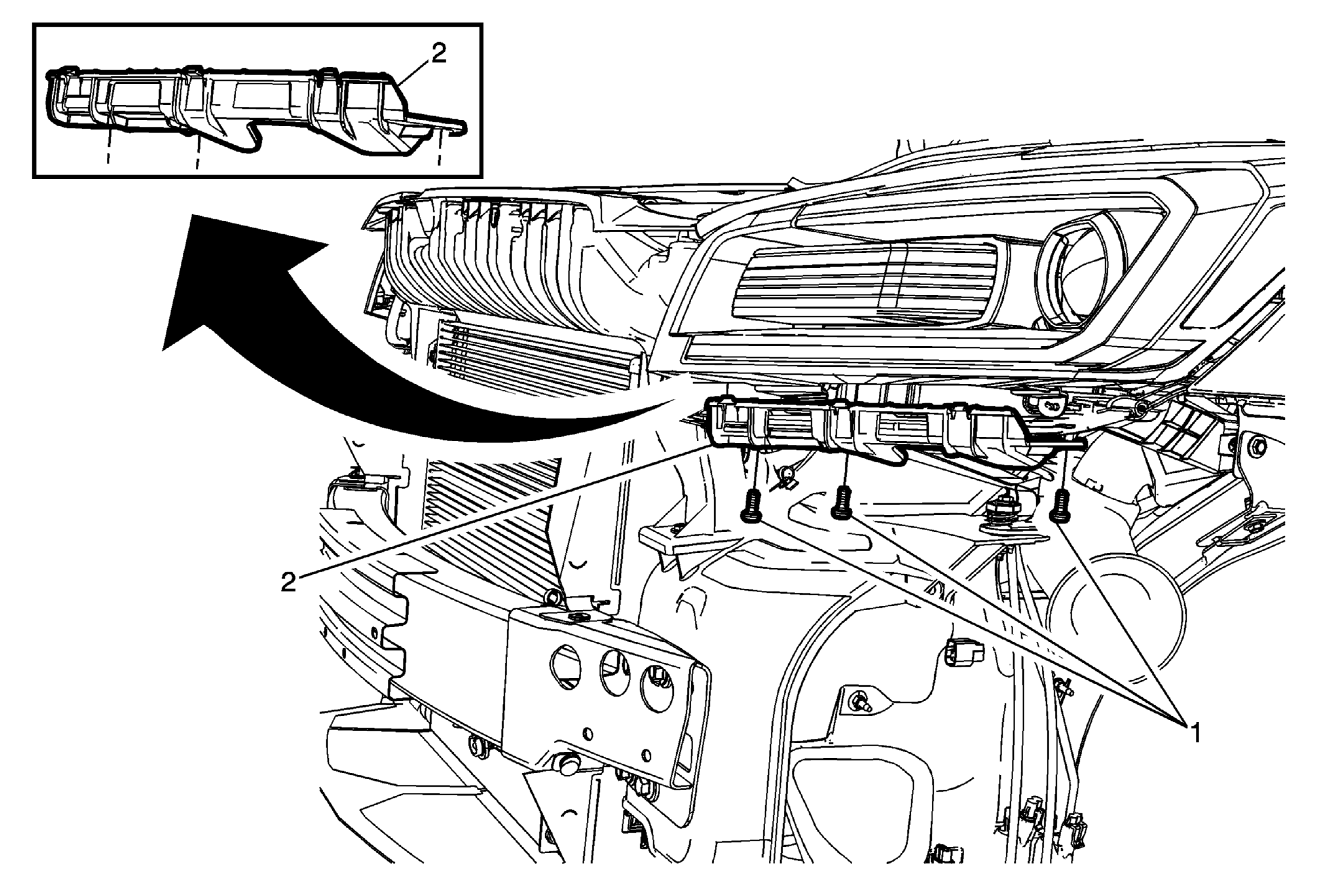

| Callout | Component Name |
|---|---|
| Procedure Remove the headlamp assembly. Refer to Headlamp Replacement (Acadia) . |
|
| 1 | Headlamp and Front Bumper Fascia Mounting Panel Support Screw (Qty: 3)
CAUTION:
Refer to Fastener Caution . Tighten 2 N.m (18 lb in) |
| 2 | Headlamp and Front Bumper Fascia Mounting Panel Support |
