Front Bumper Fascia Extension Replacement
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

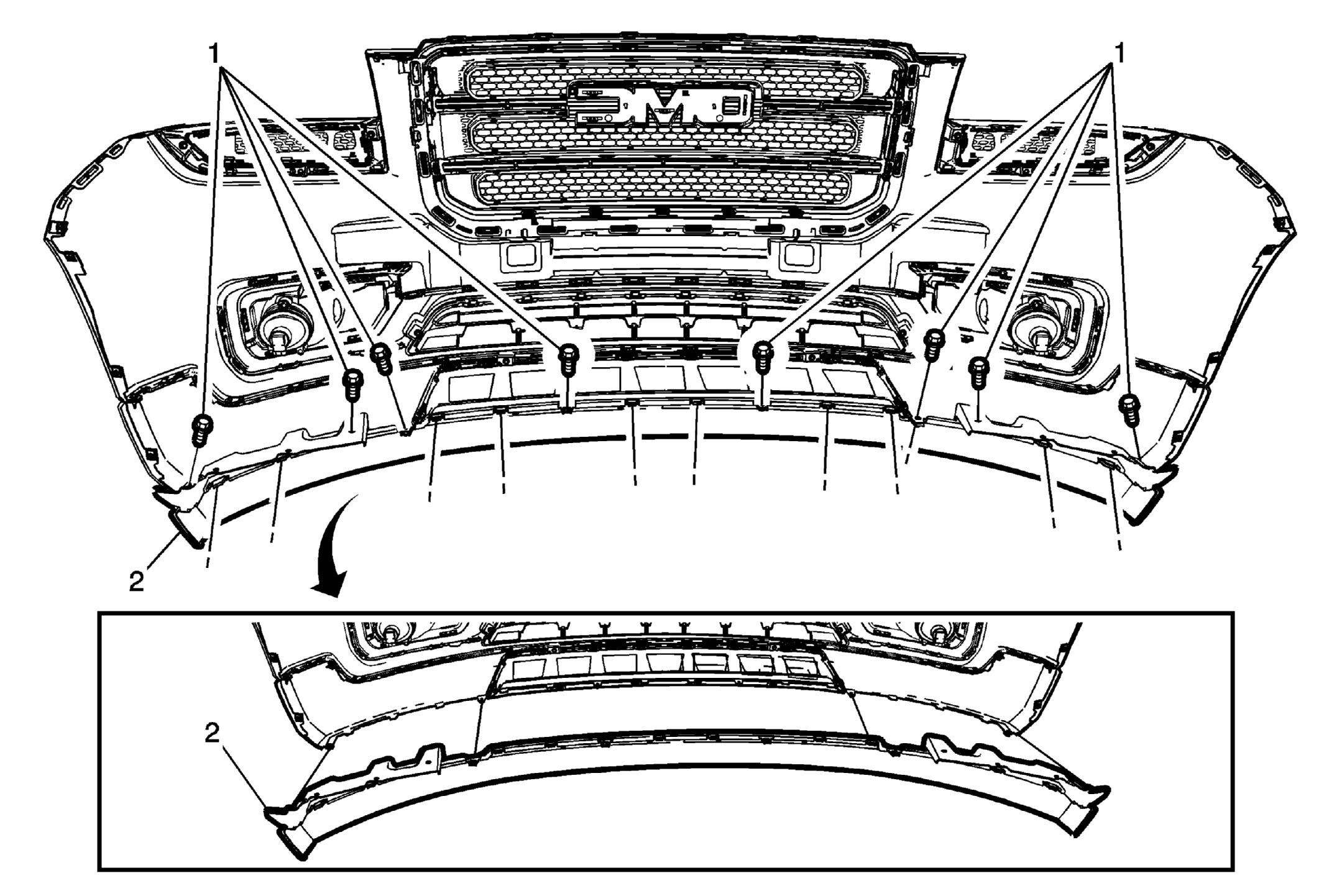

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front wheel house front liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) . |
|
| 1 | Front Bumper Fascia Extension (Qty: 8)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Bumper Fascia Extension Procedure Remove the front bumper fascia extension pulling forward to release the retainer tabs from the fascia. |
