Front Bumper Fascia Energy Absorber Replacement (Denali)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

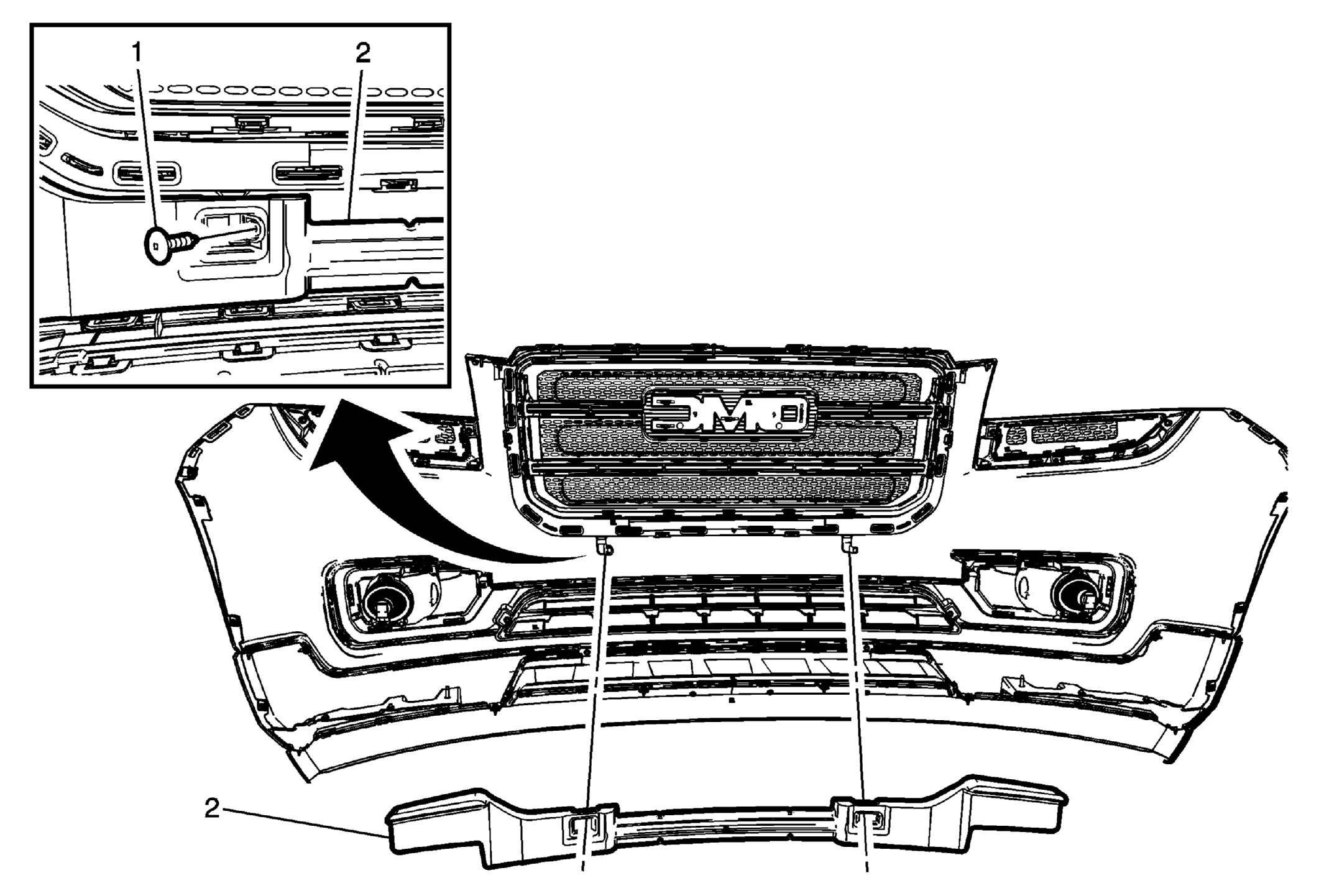

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front bumper fascia. |
|
| 1 | Front Bumper Fascia Energy Absorber Bolt
CAUTION:
Refer to Fastener Caution . Procedure Left side only. |
| 2 | Front Bumper Fascia Energy Absorber Procedure Release the 2 retainer clips. |
