Front Bumper Fascia Bracket Replacement (Acadia)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

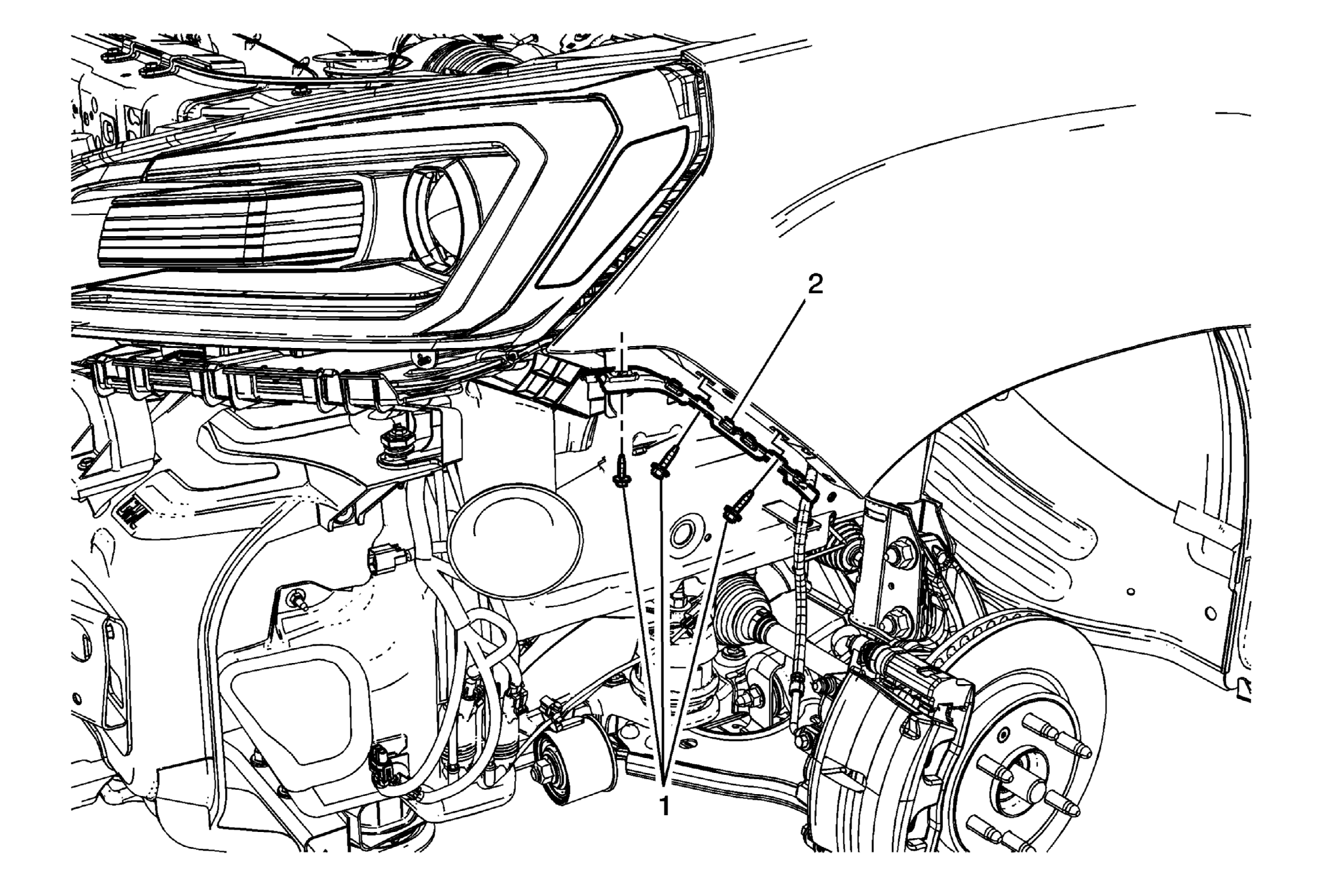

| Callout | Component Name |
|---|---|
| Preliminary Procedures Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (Acadia) |
|
| 1 | Front Bumper Fascia Bracket Bolt (Qty: 3)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Bumper Fascia Bracket |
