Front Bumper Fascia Brace Replacement (Traverse)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

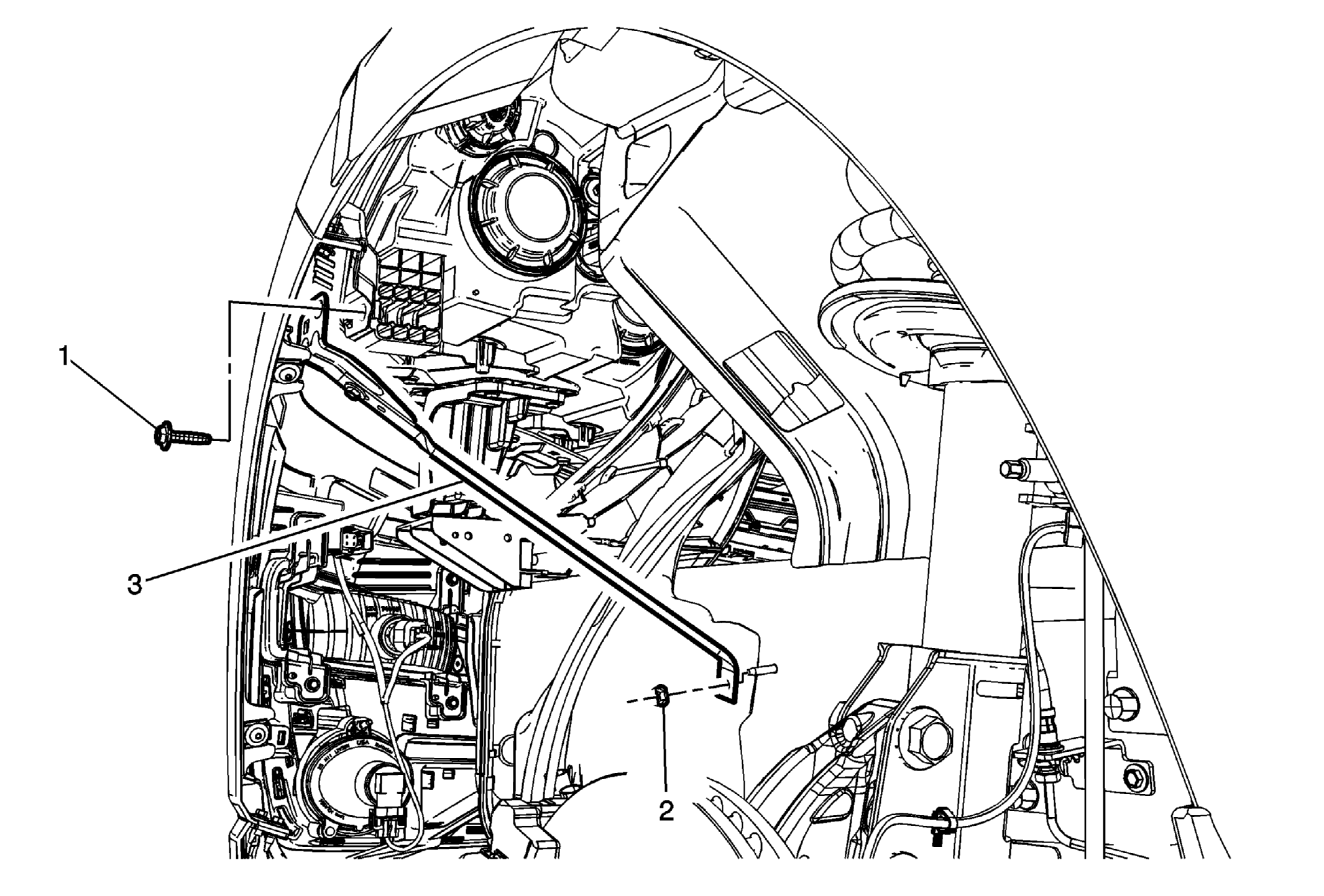

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) . |
|
| 1 | Front Bumper Fascia Brace Bolt
CAUTION:
Refer to Fastener Caution . Tighten 9 N.m (80 lb in) |
| 2 | Front Bumper Fascia Brace Nut Tighten 9 N.m (80 lb in) |
| 3 | Fender Bumper Fascia Brace |
