Front Air Deflector Replacement (Traverse)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

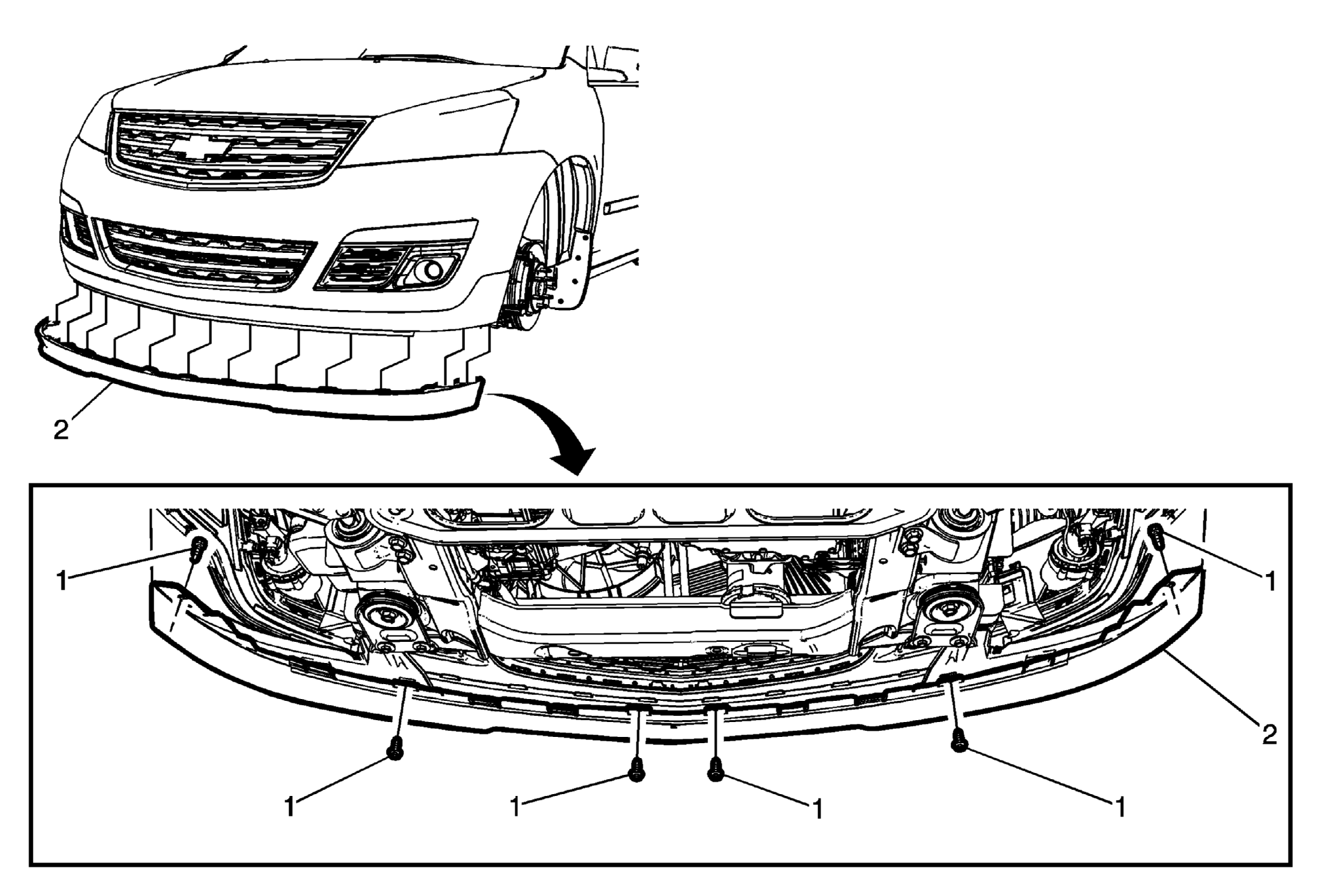

| Callout | Component Name |
|---|---|
| Preliminary Procedure Lower the front edge of the front wheelhouse front liner to access the end screws. Refer to Front Wheelhouse Front Liner Replacement (Acadia, Enclave, Traverse) . |
|
| 1 | Front Air Deflector Screw (Qty: 6)
CAUTION:
Refer to Fastener Caution . |
| 2 | Front Air Deflector Procedure Remove the front bumper fascia air deflector pulling forward to release the retainer tabs from the fascia. |
