Home >> Chevrolet >> 2010 >> Traverse LT, AWD >> Repair and Diagnosis >> External Pages >> Different car >> Section 487 (Mirror System) >> Schematic Wiring Diagrams >> Outside Rearview Mirror Wiring Schematics >> W49 with DS3

W49 with DS3

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

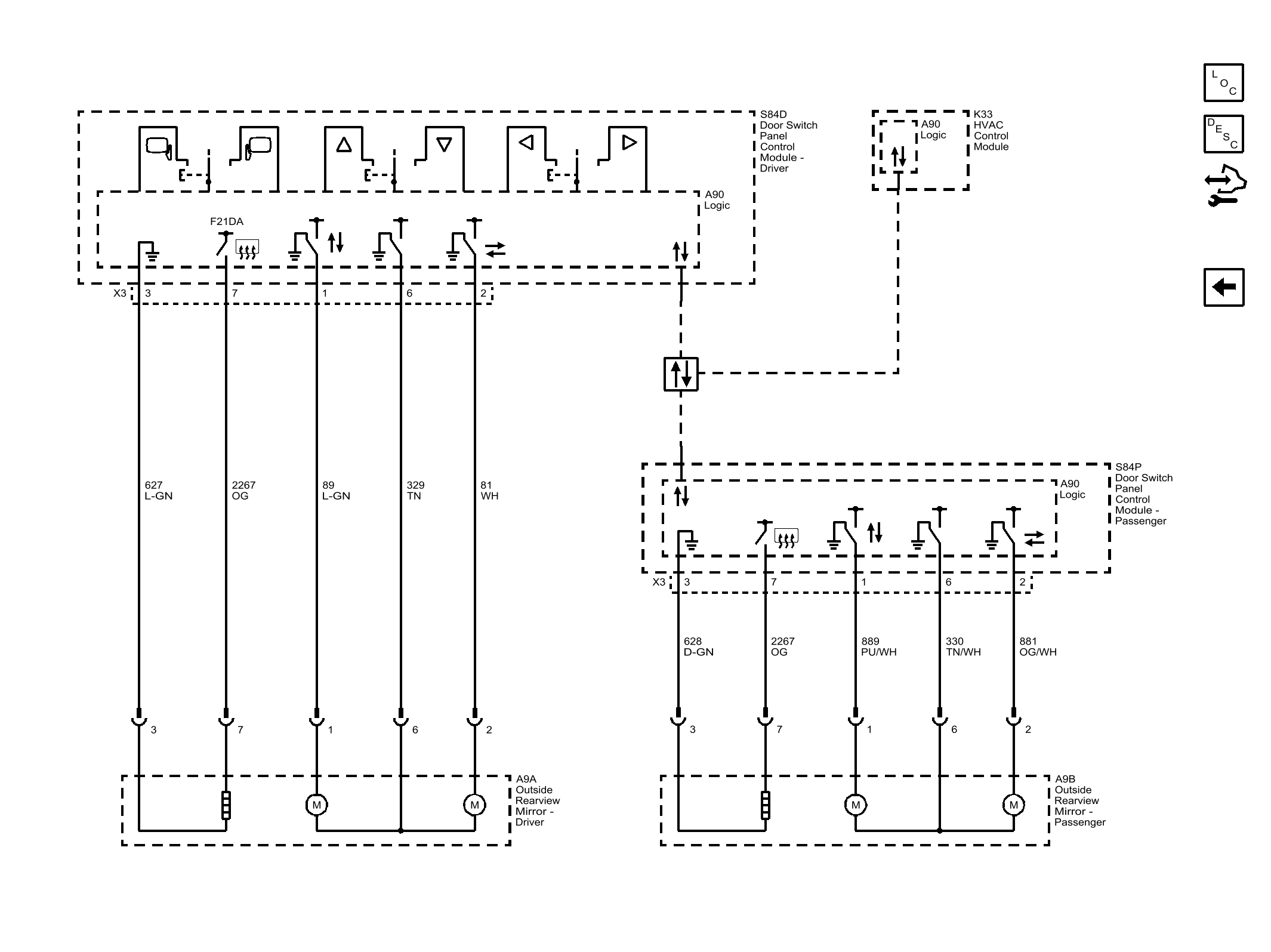

Fig 1: W49 with DS3
GM4073457Courtesy of GENERAL MOTORS COMPANY
