Inside Rearview Mirror Wiring Harness Cover Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

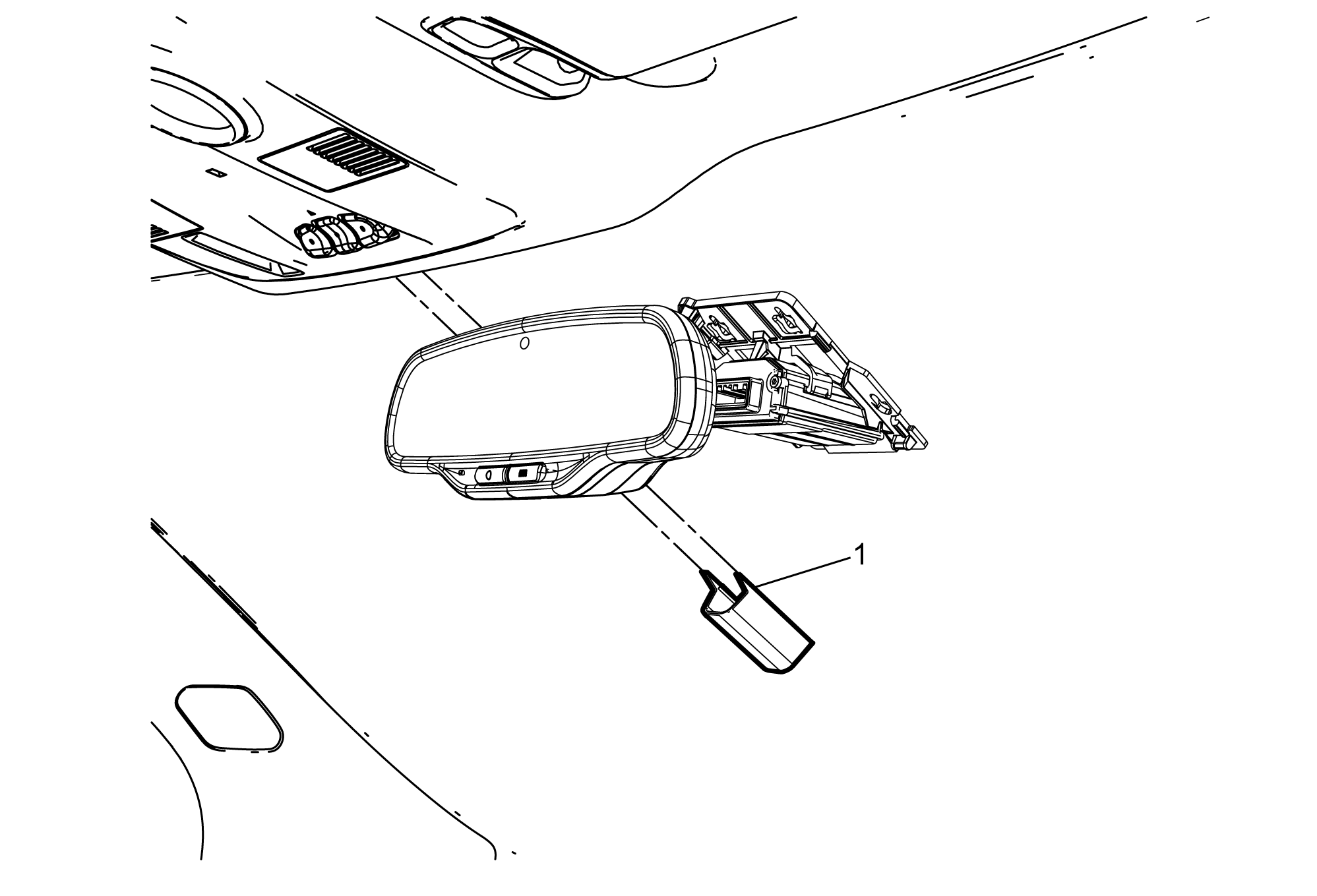

Fig 1: Inside Rearview Mirror Wiring Harness Cover
GM3642469Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Inside Rearview Mirror Wiring Harness Cover

Procedures

  1. Pull downward to completely remove cover from window.
  2. Remove the inside rearview mirror mount plate. Refer to Inside Rearview Mirror Mount Plate Replacement .
