ISS, OSS, TFT Sensors, Valve Position, and Pressure and Shift Controls

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

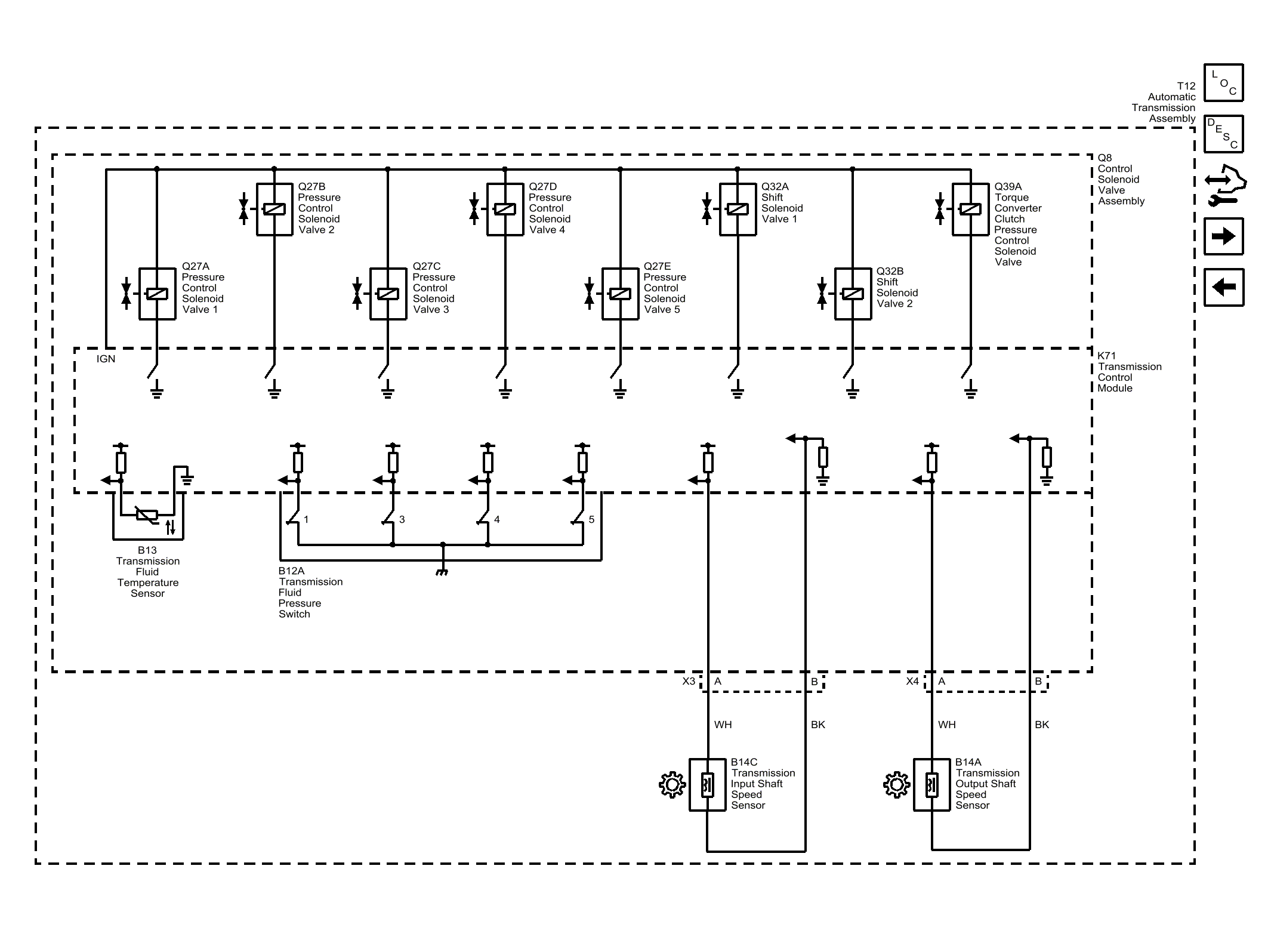

Fig 1: ISS, OSS, TFT Sensors, Valve Position, and Pressure and Shift Controls
GM4074240Courtesy of GENERAL MOTORS COMPANY
