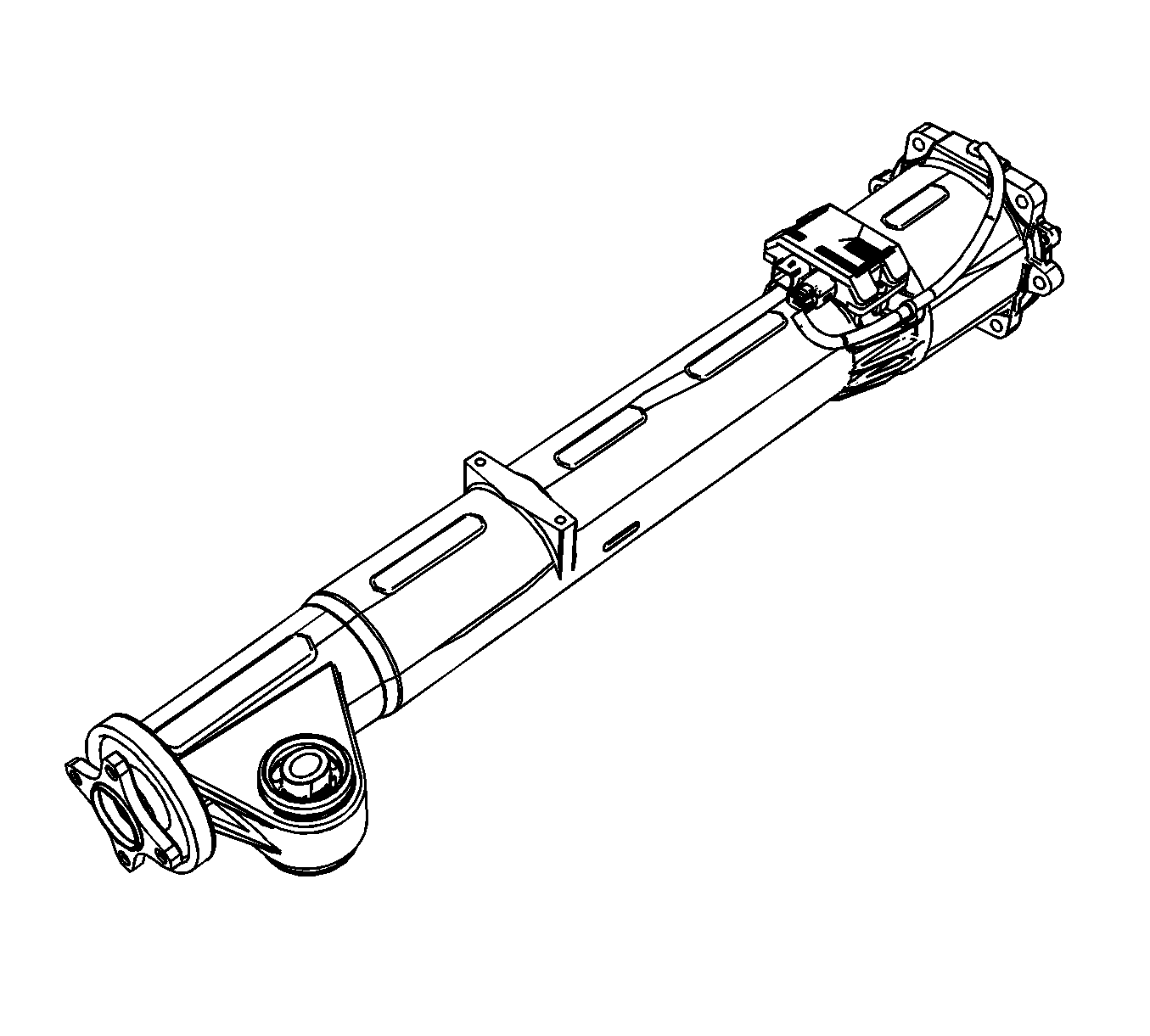

Torque Tube Assembly Cleaning and Inspection
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
- Check the torque tube for the following conditions:
- Damage to the driver flange
- Cracks or dents on the exterior of the torque tube
- Operation of all bearings
- Machine surfaces for abnormal wear
- If any of the above conditions are found to be present, replace the torque tube assembly.
IMPORTANT:
The internal components of the torque tube assembly are not serviced separately. Replace the tube and internal components as an assembly.
