Differential Carrier Cover and Seal Replacement - Left Side

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

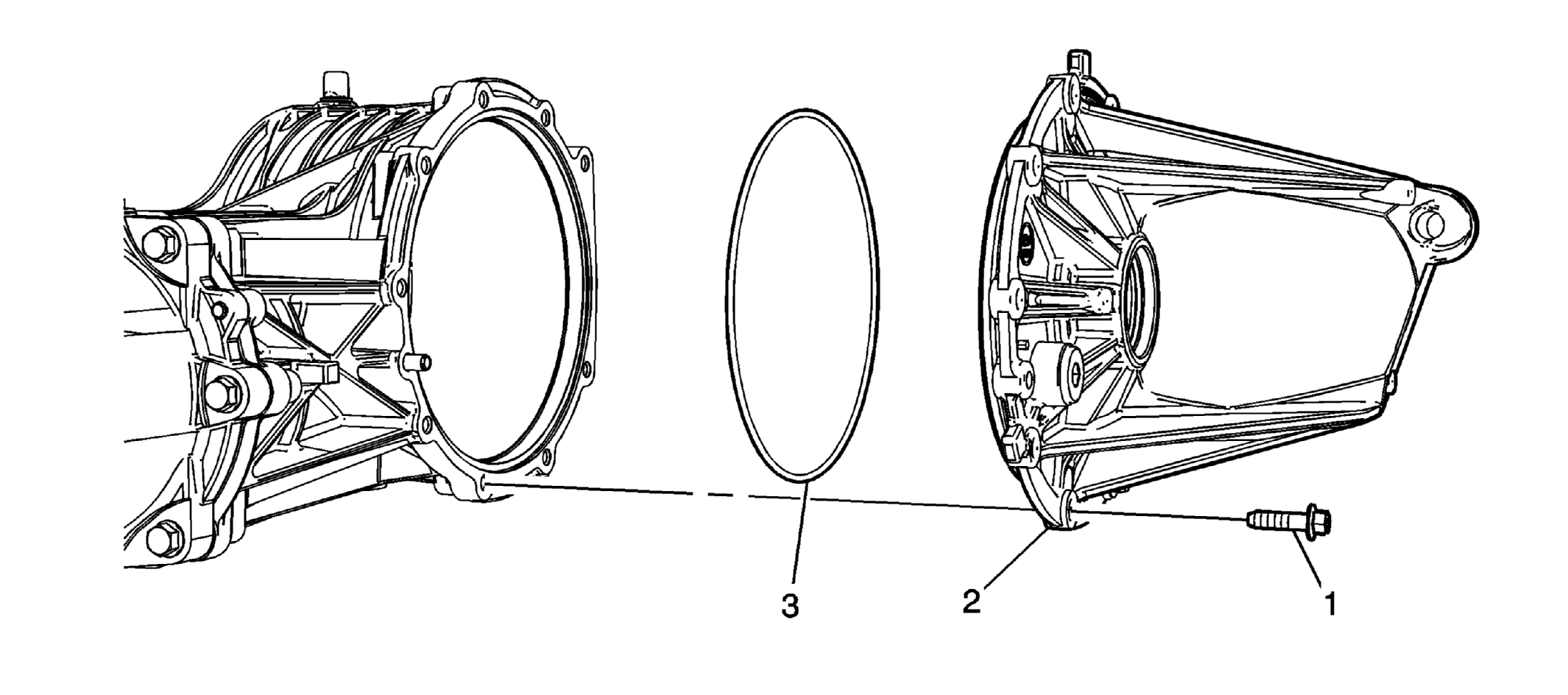

Fig 1: Differential Carrier Cover and Seal - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear differential assembly. Refer to Differential Replacement .
1	Differential Side Cover Bolt (Qty: 9) CAUTION: Refer to Fastener Caution . Finger tighten the bolts before torquing to specification. Tighten the bolts in a criss-cross pattern. Tighten 28 N.m (21 lb ft)
2	Differential Side Cover TIP: Inspect the differential side cover for any damage. If the side cover is damaged, replace the differential assembly. The side cover is not serviced separately.
3	Differential Side Cover Seal Before installing the side cover seal, ensure that the groove for the side cover seal is free of dirt and debris. This will ensure that the seal seat properly in the differential housing. Apply a small amount of clean oil to the side cover seal.
