Removal Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.
  1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
  2. Remove the rear differential assembly. Refer to Differential Replacement .
    3. Fig 1: Reference Point On Frame
    GM1827320Courtesy of GENERAL MOTORS COMPANY
  3. Mark a reference point on the frame and old bushing at the 12 and 6 o'clock position to use to align the new bushing.
    4. Fig 2: View Of J-45725-2A & Bushing
    GM1827150Courtesy of GENERAL MOTORS COMPANY
  4. Position the J-45725-1A (1) on the bushing (2).
  5. Position the J-45725-2A (1) on the frame.
    6. IMPORTANT:

    Apply a small amount of grease on the threaded to lubricate the nuts when turning the nuts.

  6. Install the threaded rod, bearing and washers.
    7. Fig 3: Cradle Bushing Replacer
    GM1827447Courtesy of GENERAL MOTORS COMPANY
  7. Adjust the nuts so that they are touching the J-45725-1A (2) and the J-45725-2A (1).
  8. Install the proper size wrenches on the nuts.
    9. Fig 4: View Of Attaching Nuts
    GM1827454Courtesy of GENERAL MOTORS COMPANY
    IMPORTANT:

    In the following service procedure, use only HAND TOOLS when using the J-45725  Cradle Bushing Replacer.

  9. While holding the front wrench (1) rotate the rear wrench (2) to remove the bushing.
  10. Remove the special tools.

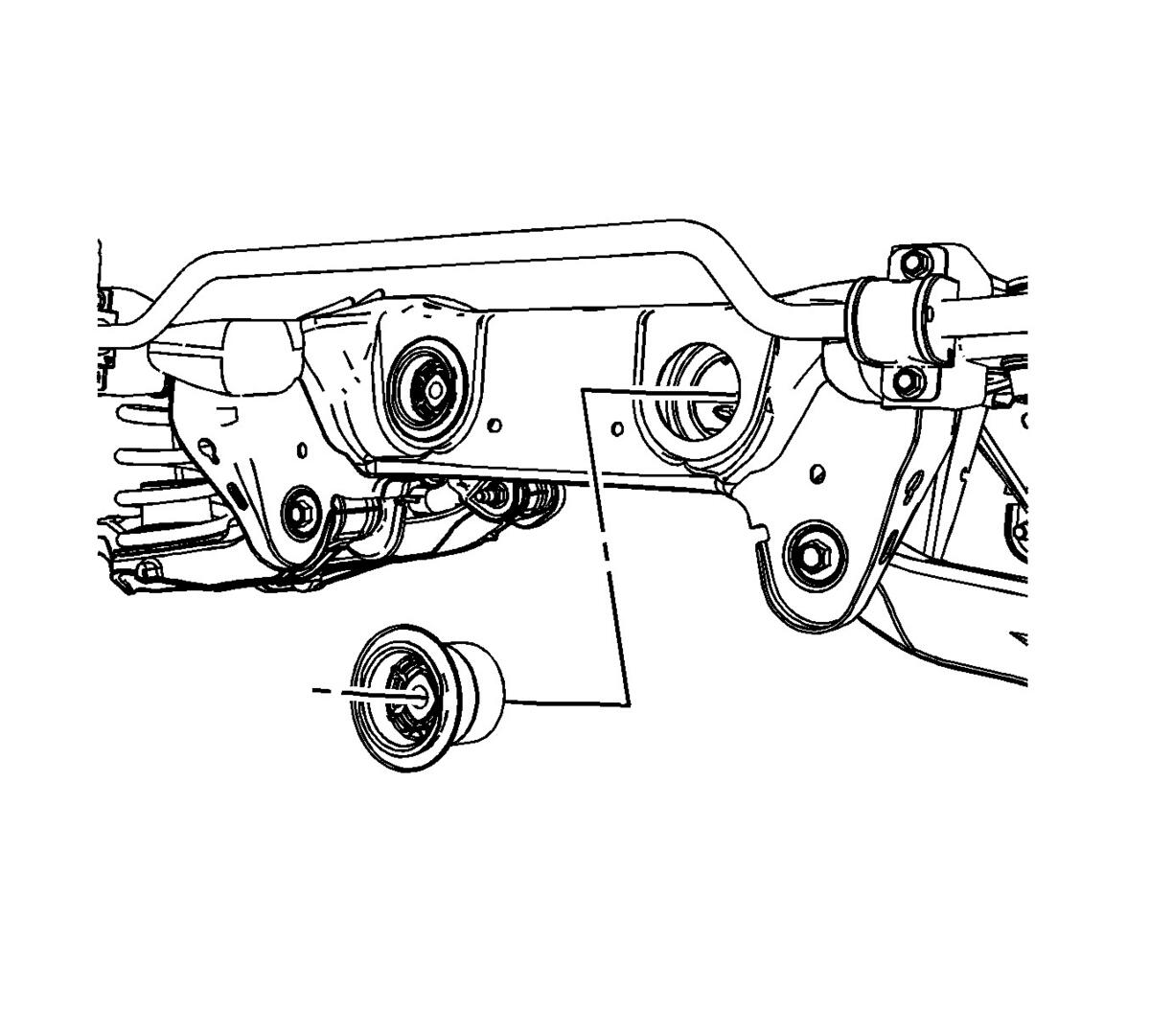

    11. Fig 5: View Of Frame Bushing
    GM1849221Courtesy of GENERAL MOTORS COMPANY
  11. Remove the bushing from the frame.
