Installation Procedure

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

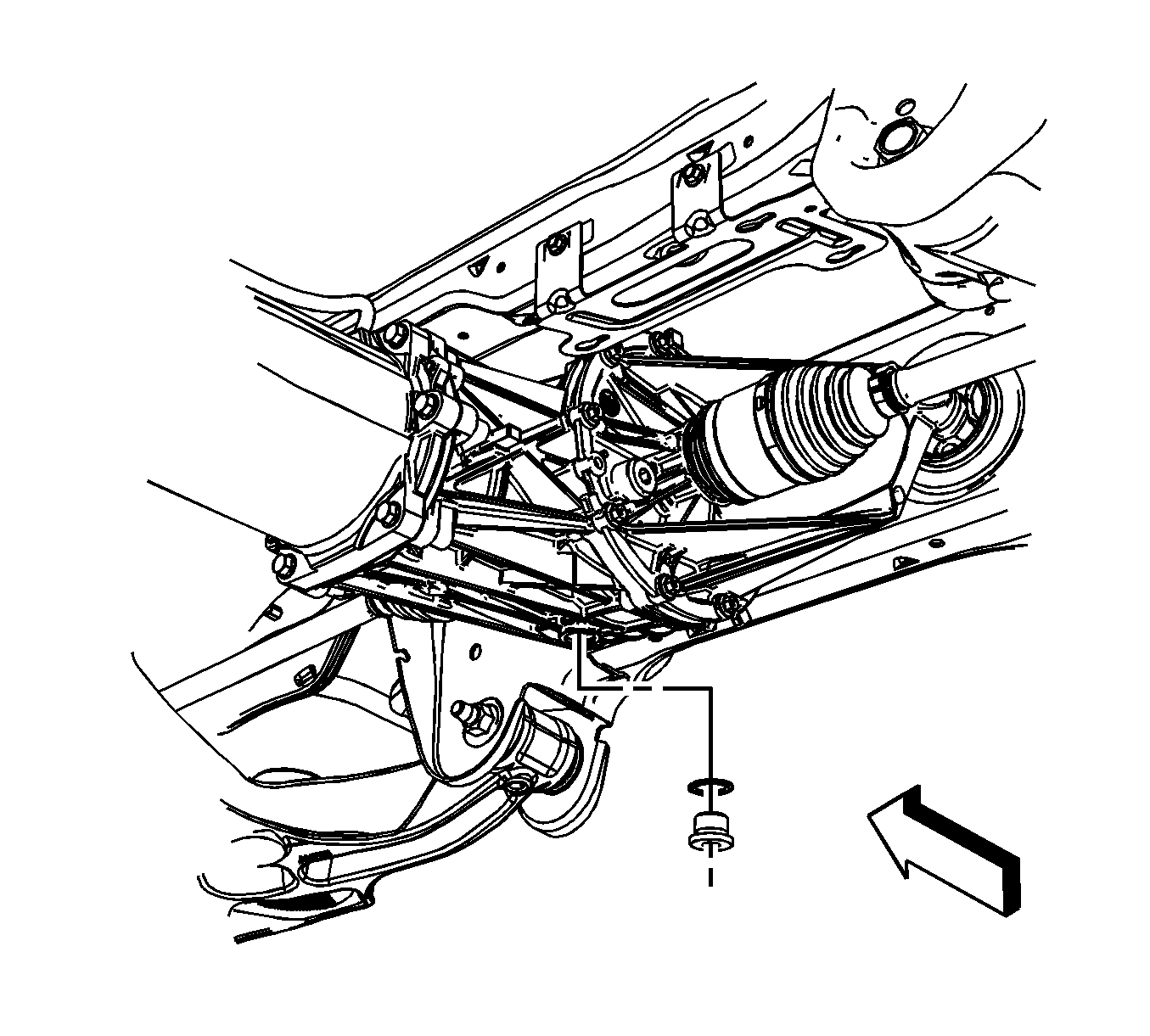

    Fig 1: Rear Differential Housing Drain Plug
    GM1848813Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the drain plug and gasket, then tighten to 35 N.m (26 lb ft).

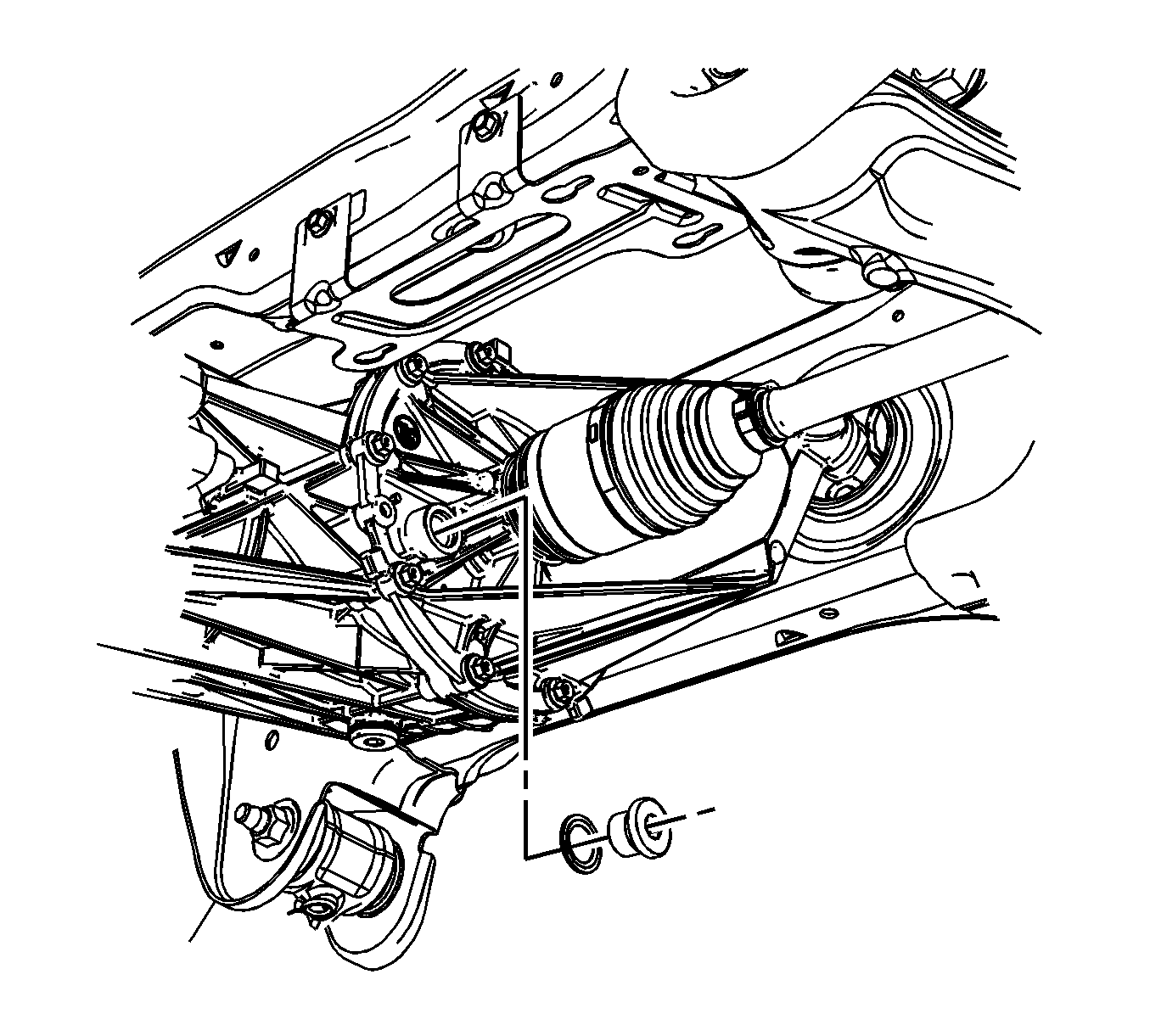

    2. Fig 2: Locating Rear Differential Fill Plug
    GM1848811Courtesy of GENERAL MOTORS COMPANY
  2. Remove the fill plug and gasket from the rear differential housing.
  3. Fill the rear differential with the proper synthetic gear lubricant. Refer to Adhesives, Fluids, Lubricants, and Sealers .
  4. Inspect the gear oil level to ensure it is even with the bottom of the fill plug.
  5. Install the fill plug and gasket in the rear differential housing and tighten to 35 N.m (26 lb ft).
  6. Remove the support and lower the vehicle.
