Liftgate Latch (TB4)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

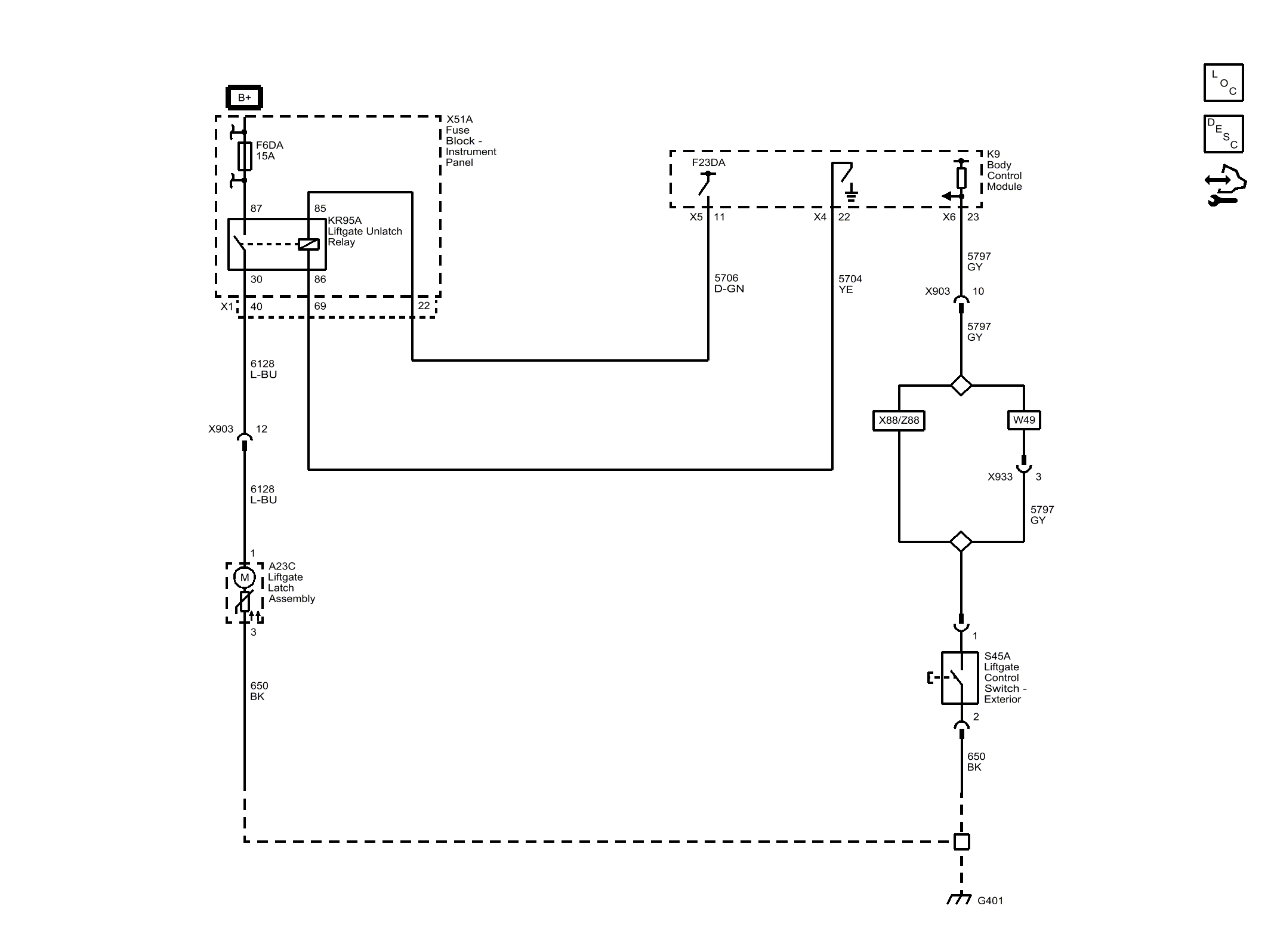

Fig 1: Liftgate Latch (TB4)
GM4073570Courtesy of GENERAL MOTORS COMPANY
