Rear Side Door Locking Rod Knob Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

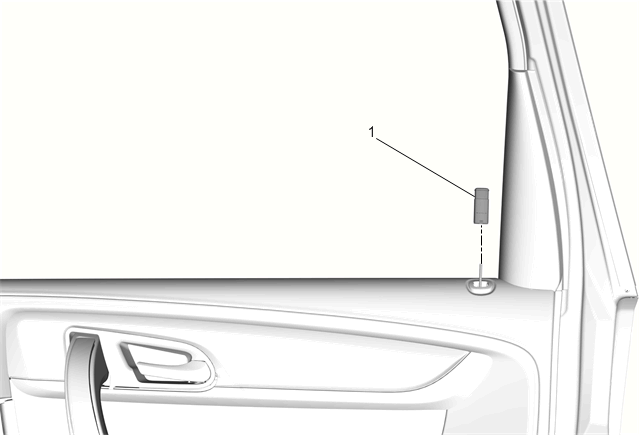

Fig 1: Rear Side Door Locking Rod Knob

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Locking Rod Knob Procedure Ensure the locking rod is in the unlocked position. Use a flat-bladed tool to disengage the detent tab and then remove the knob by pulling upward. When re-installing, push the knob down until the detent tab touches the locking rod opening cover. Push the detent tab into the lock knob to locking rod.

Callout

Component Name

Rear Side Door Locking Rod Knob

Procedure

Ensure the locking rod is in the unlocked position.
Use a flat-bladed tool to disengage the detent tab and then remove the knob by pulling upward.
When re-installing, push the knob down until the detent tab touches the locking rod opening cover.
Push the detent tab into the lock knob to locking rod.
