Liftgate Release Switch Replacement (Acadia, Enclave)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

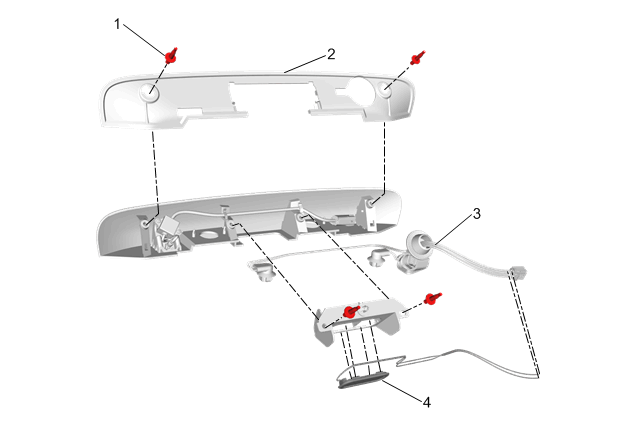

Fig 1: Liftgate Release Switch (Acadia, Enclave)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Liftgate Applique Replacement (Acadia) .
1	Double Ended Stud with Collar (Qty: 4) NOTE: Remove stud in order to remove the isolator and liftgate switch from the applique.
2	Liftgate Applique Isolator NOTE: Carefully release the isolator tab from the liftgate applique.
3	Rear License Plate Lamp
4	Liftgate Release Switch Procedure Release the liftgate release switch tabs. Splice the new switch into the rear licence plate lamp. Splicing Copper Wire Using Splice Sleeves Ensure the electrical harness is properly positioned prior to installation of the liftgate applique isolator.
