Liftgate Outside Handle Replacement (Acadia, Traverse)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

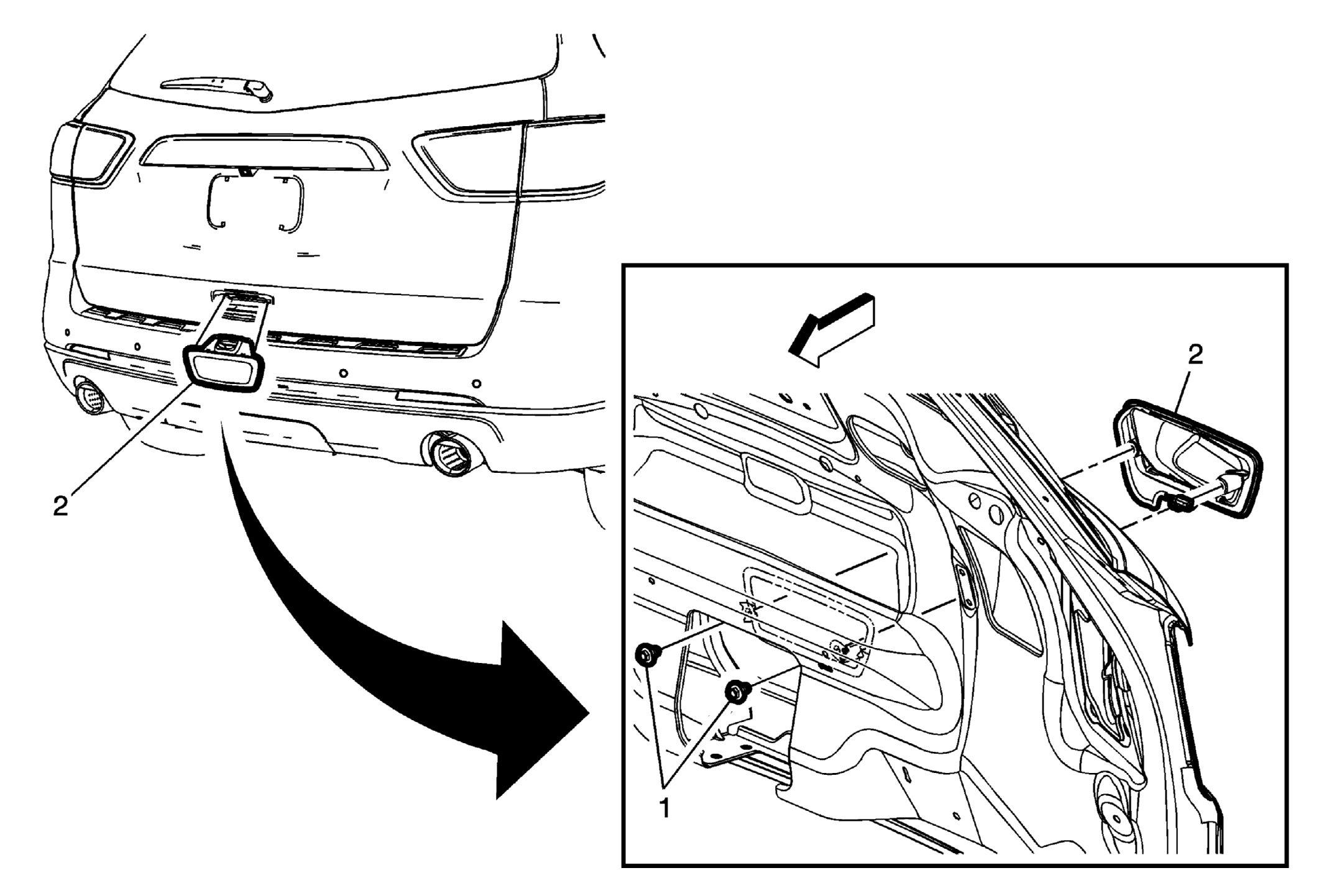

Fig 1: Liftgate Outside Handle (Acadia, Traverse)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Traverse)Liftgate Trim Panel Replacement (Acadia) .
1	Liftgate Outside Handle Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 9N.m (80 lb in)
2	Liftgate Outside Handle Procedure Disconnect the electrical connector. Transfer the liftgate release switch if needed. Refer to Liftgate Release Switch Replacement .

Callout

Component Name

Preliminary Procedure
Remove the liftgate trim panel. Refer to Liftgate Trim Panel Replacement (Traverse)Liftgate Trim Panel Replacement (Acadia) .

Liftgate Outside Handle Bolt (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Tighten
9N.m (80 lb in)

Liftgate Outside Handle

Procedure

Disconnect the electrical connector.
Transfer the liftgate release switch if needed. Refer to Liftgate Release Switch Replacement .
