Section 479 (Seat Heating System And Seat Cooling System)
>>
Schematic Wiring Diagrams
>>
Heated/Cooled Seat Wiring Schematics
>>
Indicators and Switches (SPO Accessory)
Indicators and Switches (SPO Accessory)
WARNING:
This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

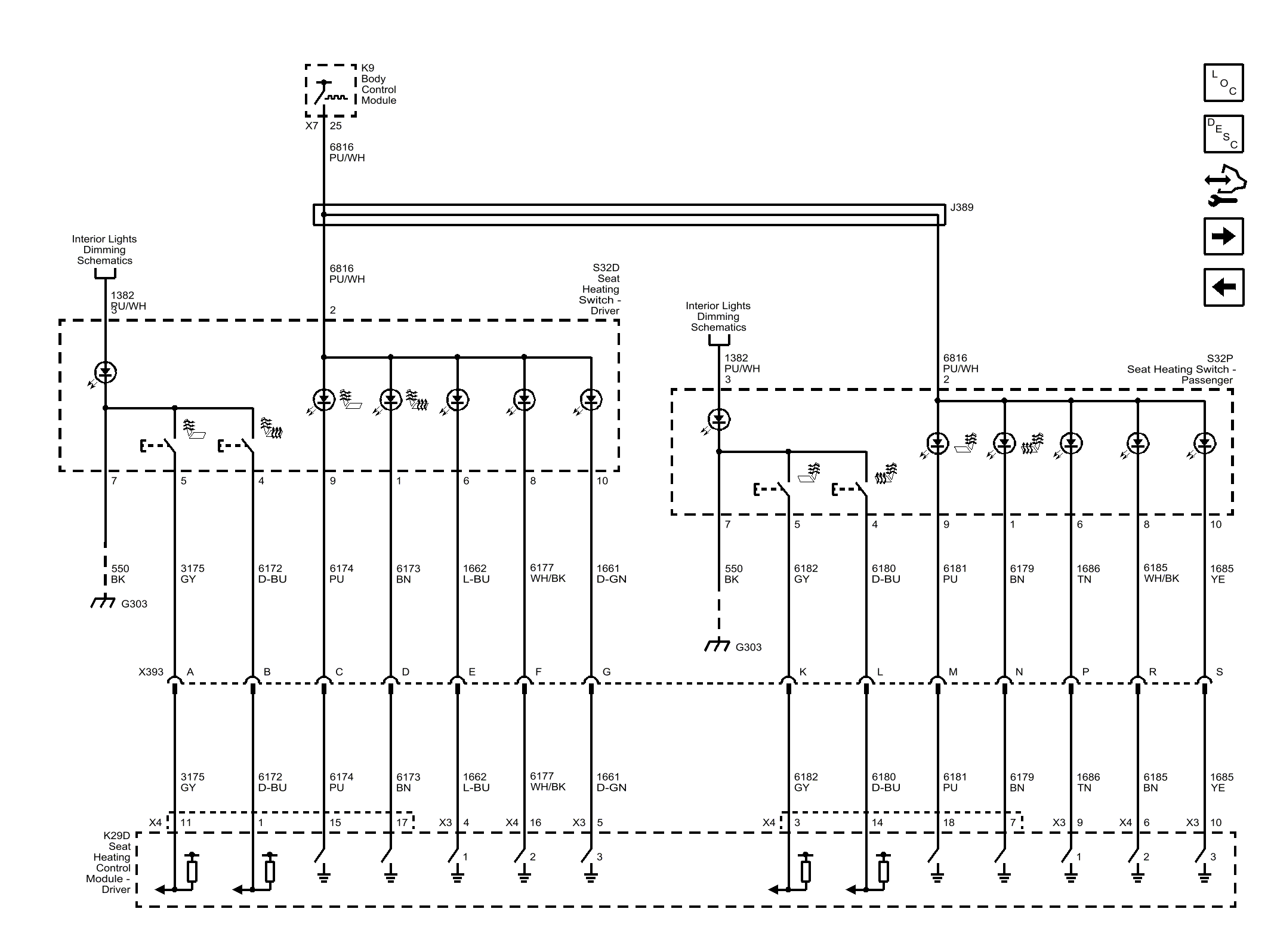

Fig 1: Indicators and Switches (SPO Accessory)
Courtesy of GENERAL MOTORS COMPANY
