Front Seat Cushion Ventilation Blower Replacement

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

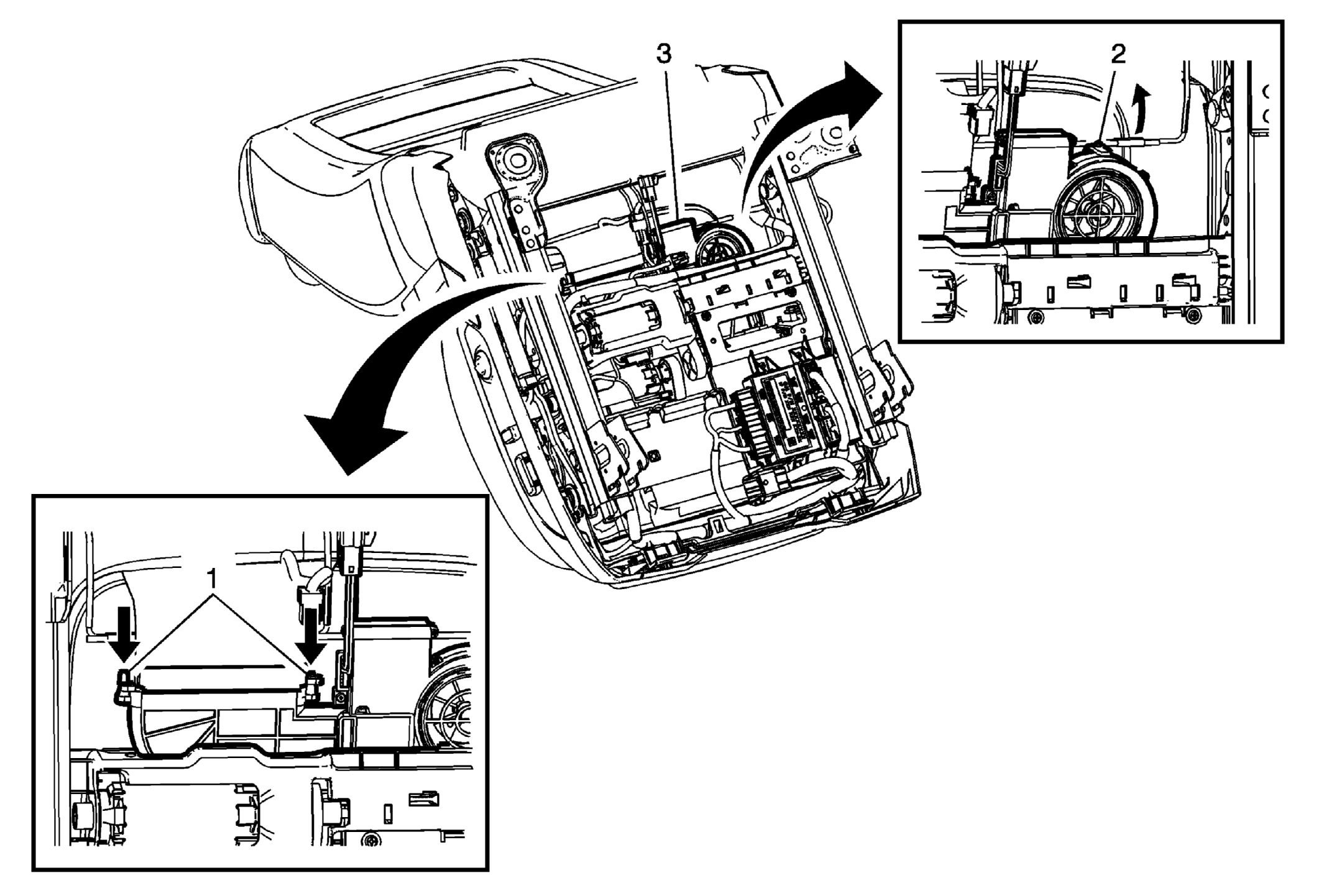

Fig 1: Front Seat Cushion Ventilation Blower

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front seat. Refer to Bucket Seat Removal and Installation .
1	Driver and Passenger Seat Cushion Ventilation Heating and Cooling Blower Motor Alignment Locking Tab (Qty: 2) Procedure Raise the power seat to it's highest position before disconnecting the seat wiring harness. Tilt the seat forward to allow access to the underside of the lower seat cushion area. Disconnect the blower wiring harness from the seat harness. Disconnect the air duct from the blower motor assembly. Using a needle nose pliers or suitable tool, pinch the alignment locking tabs together and push downward to release them from the heater duct.
2	Driver and Passenger Seat Cushion Ventilation Heating and Cooling Blower Motor Mounting Clip (Qty: 3) Procedure Disconnect the rubber mounting clips from the seat cushion wire by gently pulling upward on the rubber tabs.
3	Driver and Passenger Seat Cushion Ventilation Heating and Cooling Blower Motor Assembly Procedure Remove the blower motor assembly from the seat. NOTE: Do not touch or bump the white filter on the blower motor assembly or place the blower motor filter-side down.
