Front, Rear, and Outside Mirror Turn Signals (X88)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

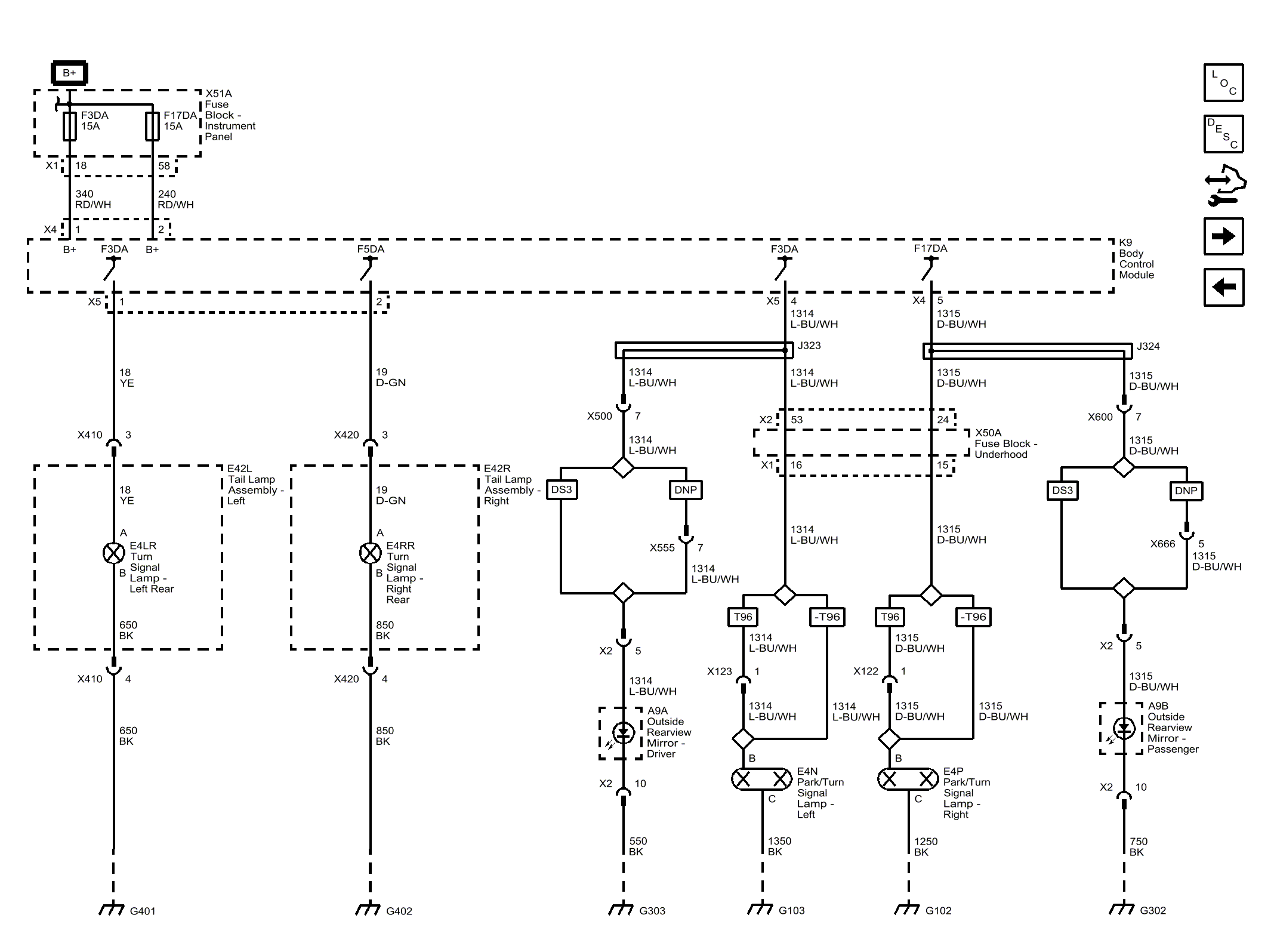

Fig 1: Front, Rear, and Outside Mirror Turn Signals (X88)
GM4073291Courtesy of GENERAL MOTORS COMPANY
