Front Side Marker Lamps, Front Park Lamps. Rear Body Park Lamps, and Trailer Connector (W49)

WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

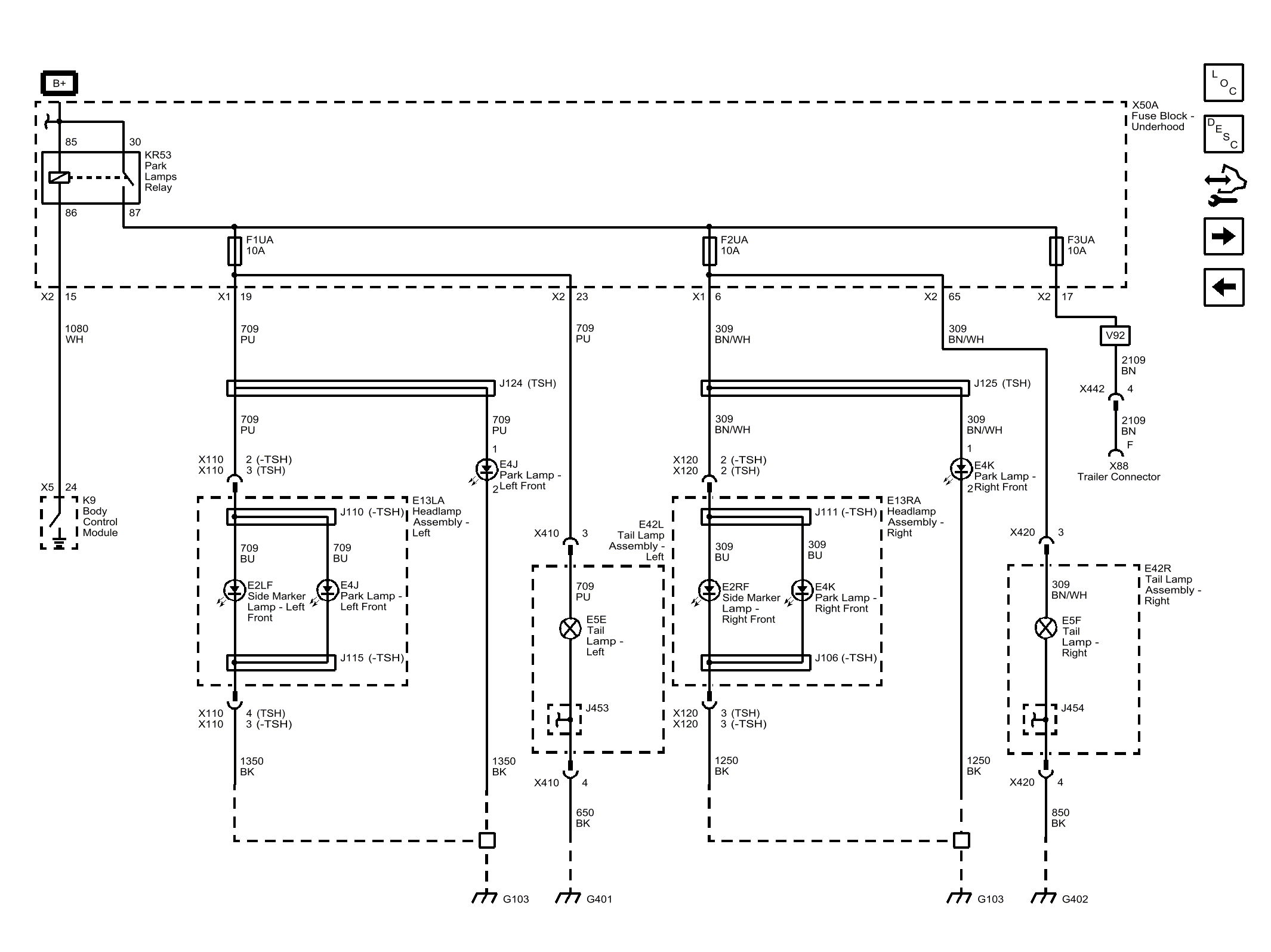

Fig 1: Front Side Marker Lamps, Front Park Lamps. Rear Body Park Lamps, and Trailer Connector (W49)
GM4073284Courtesy of GENERAL MOTORS COMPANY
