Section 474 (Data Communication System)
>>
Schematic Wiring Diagrams
>>
Body Control System Wiring Schematics
>>
Subsystem References (1 of 3)
Subsystem References (1 of 3)
WARNING:
This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

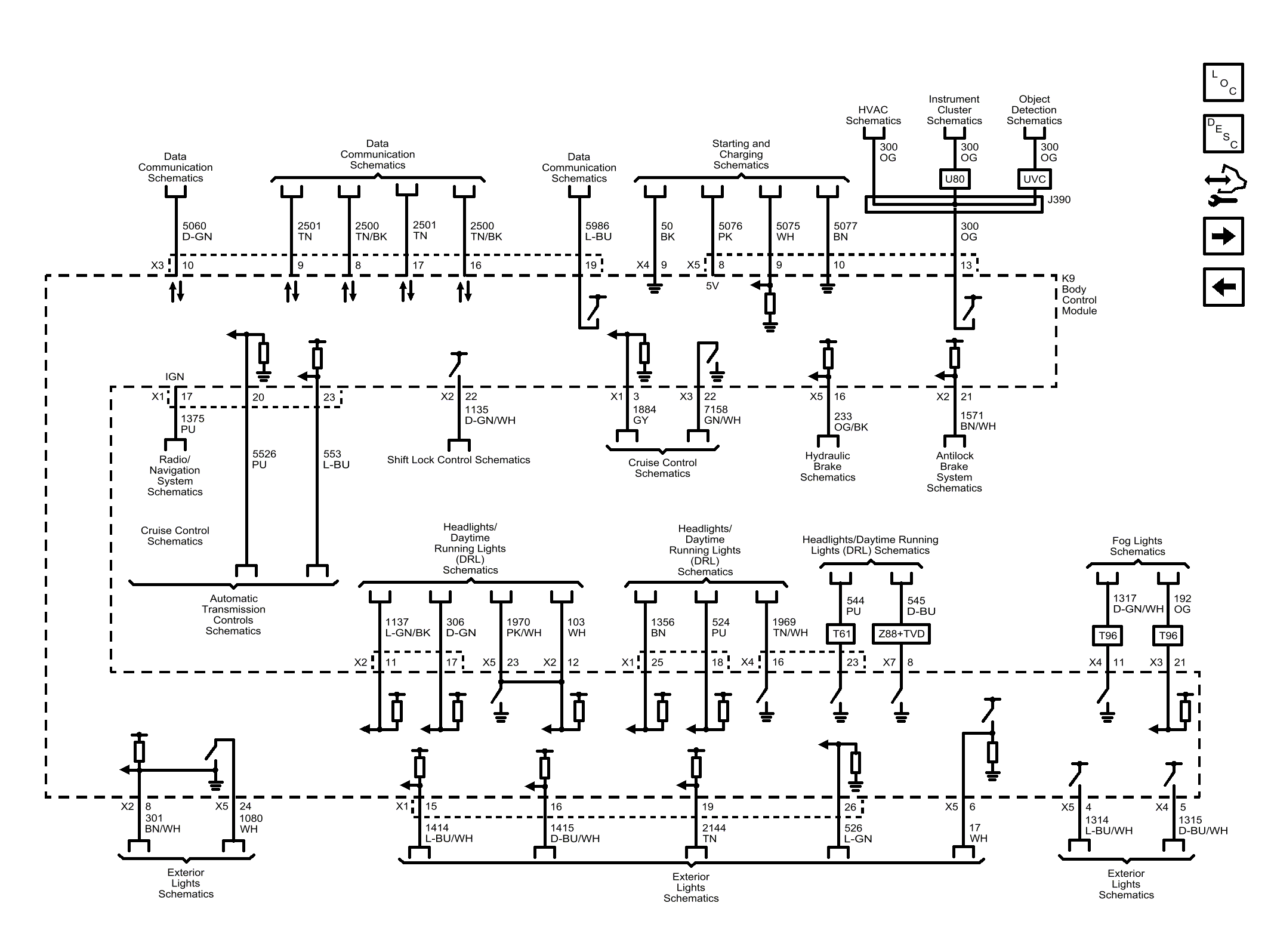

Fig 1: Subsystem References (1 of 3)
Courtesy of GENERAL MOTORS COMPANY
