Side Window Defogger Outlet Grille Replacement - Left Side (Traverse)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

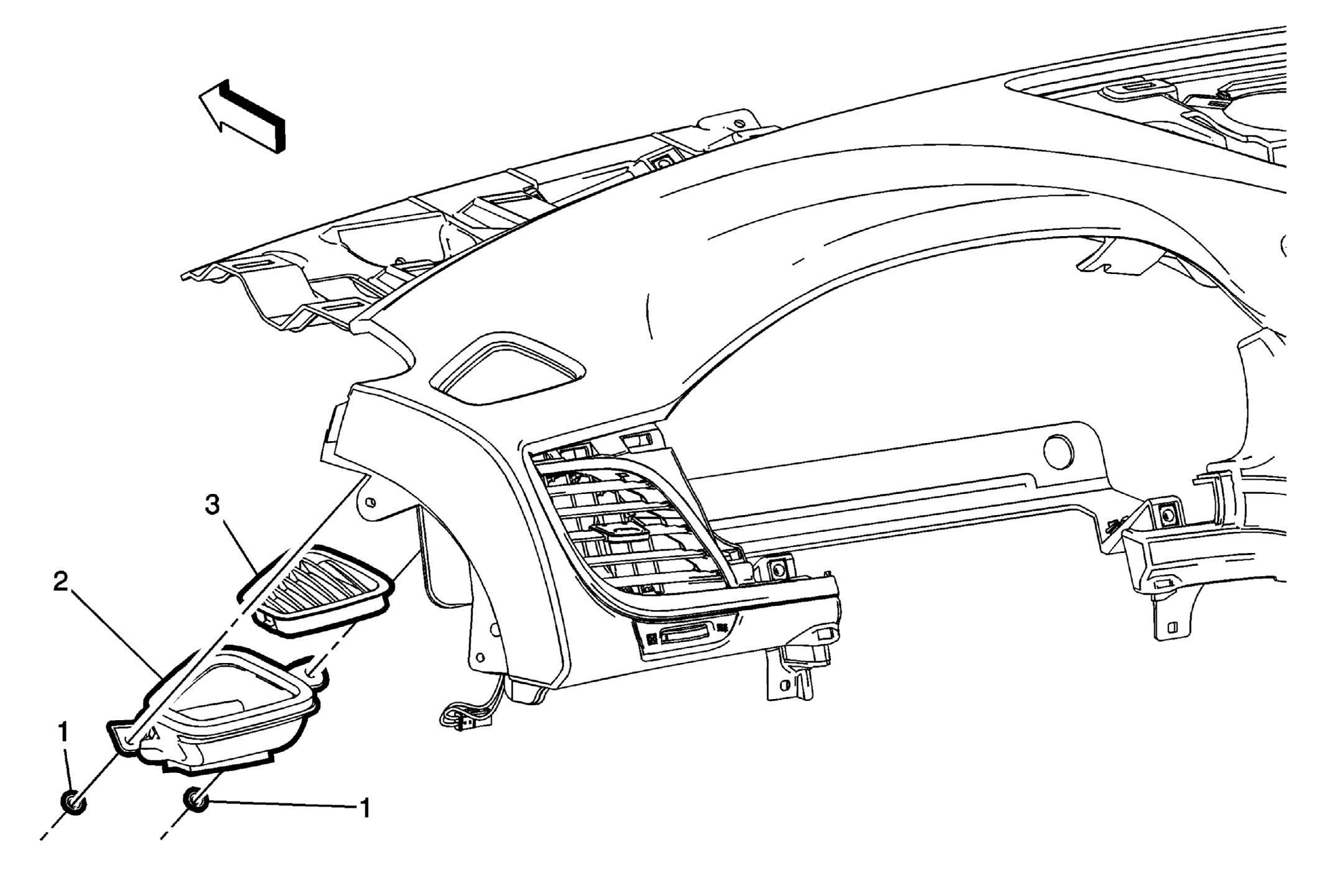

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove the instrument panel trim pad. Refer to Instrument Panel Trim Pad Replacement (Traverse) . |
|
| 1 | Pal Nuts (Qty: 2) Procedure Tighten the pal nuts until fully seated but not stripped |
| 2 | Side Window Defroster Outlet Duct Assembly |
| 3 | Side Window Defogger Outlet Grille - Left Side |
