Instrument Panel Outer Air Outlet Replacement - Right Side (Acadia)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

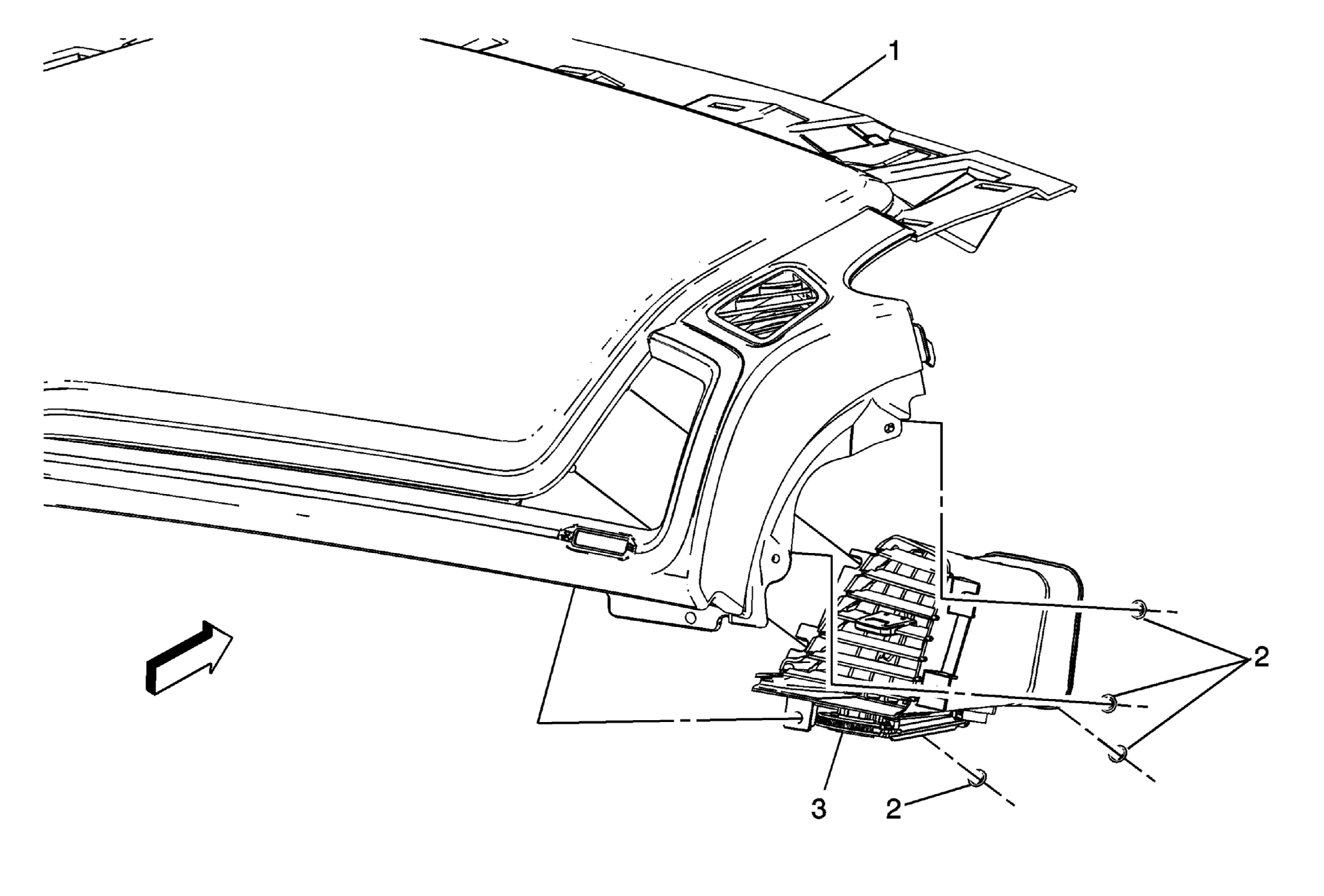

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Trim Pad Refer to Instrument Panel Trim Pad Replacement (Acadia w/RPO UV6)Instrument Panel Trim Pad Replacement (Acadia w/o RPO UV6) . |
| 2 | Pal Nuts (Qty: 5) Procedure Tighten the pal nuts until fully seated but not stripped. |
| 3 | Instrument Panel Outer Air Outlet - Right Side |
