Instrument Panel Outer Air Outlet Replacement - Left Side (Enclave)
WARNING: This page is about a different car, the 2016 GMC Acadia, 2016 Chevrolet Traverse, and 2016 Buick Enclave. However, it is still accessible from the selected car via links, so may be relevant.

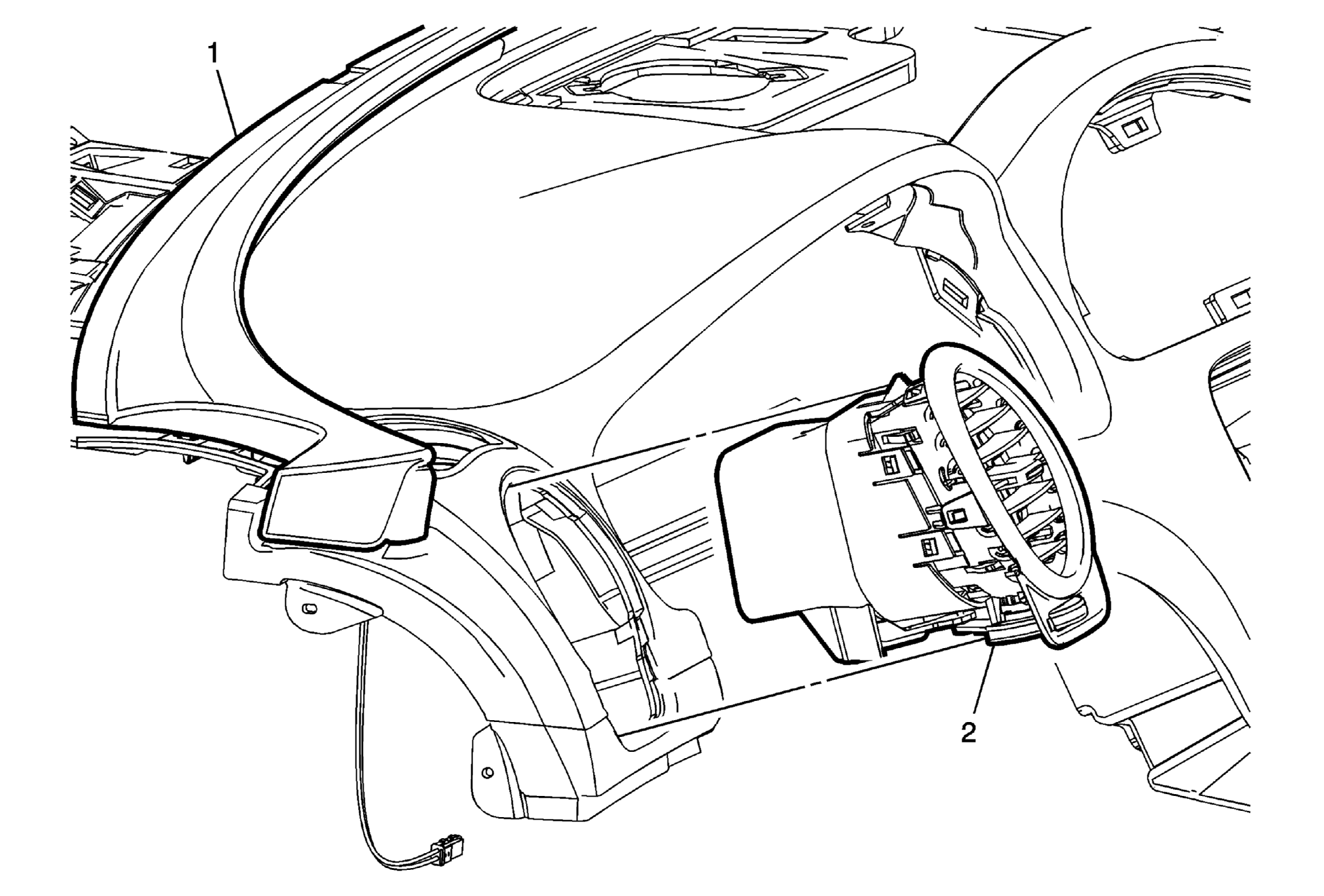

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Trim Pad Refer to Instrument Panel Trim Pad Replacement (Enclave) . |
| 2 | Instrument Panel Outer Air Outlet - Left Side Procedure Unsnap the air outlet from the back side of the trim panel and push the air outlet forward out of the trim panel. |
